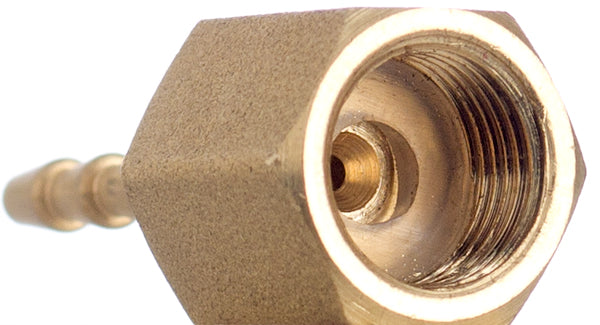

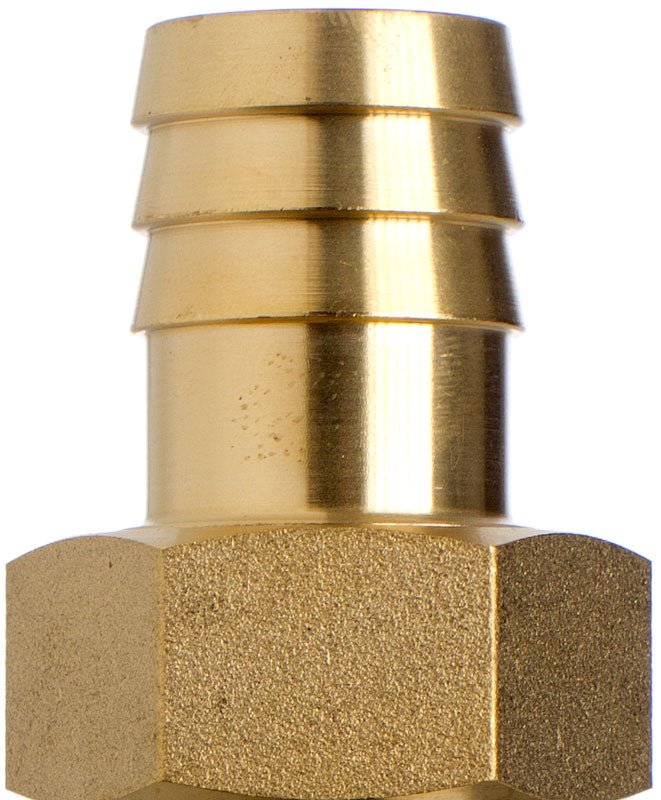

Hose tail 25 mm, 1 inch female thread, flat sealing, union nut, brass
€14,20
Taxes included.
Shipping calculated at checkout.
- SKU: ST-25-ÜM-1
People are currently viewing this
Couldn't load pickup availability
Description
Hose barb 25 mm, 1 inch internal thread, flat sealing, union nut, brass
The nut can be rotated without the hose barb twisting.
We recommend using our hydraulic adhesive to install the barbs.
Overall length 49.6 mm
Usable hose barb 31.3 mm
Outer diameter from 23.19 - 25.18 mm (corrugation inside - outside)
Wrench size 36 mm
Temperature range -20°C to +80°C
Pressure rating 10 bar with 3-fold safety
Material MS58
Seal material PU
Weight 85 g
The nut can be rotated without the hose barb twisting.
We recommend using our hydraulic adhesive to install the barbs.
Overall length 49.6 mm
Usable hose barb 31.3 mm
Outer diameter from 23.19 - 25.18 mm (corrugation inside - outside)
Wrench size 36 mm
Temperature range -20°C to +80°C
Pressure rating 10 bar with 3-fold safety
Material MS58
Seal material PU
Weight 85 g
