Transfer pump for water, 12 volts, max. 50 l/min

Water Transfer Pump, 12 Volt, max. 50 l/min

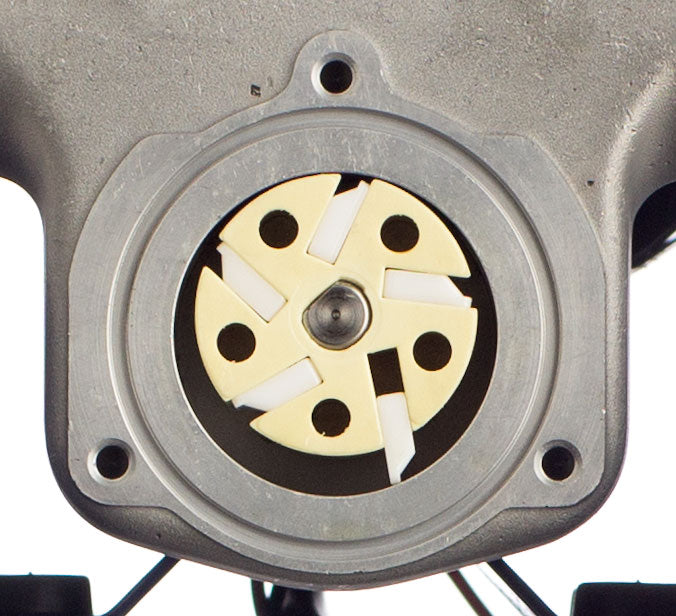

This positive displacement pump allows water to be transferred from barrels, canisters, and tanks.

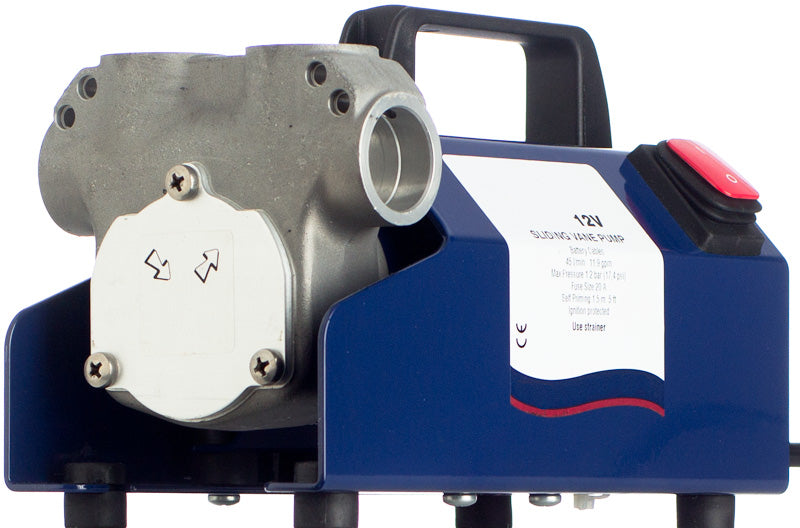

The pump is equipped with a waterproof on/off switch and a bypass valve.

The positive displacement pump is suitable for continuous operation and is self-priming.

The supplied hose nozzles can be positioned variably in the pump according to the operating conditions.

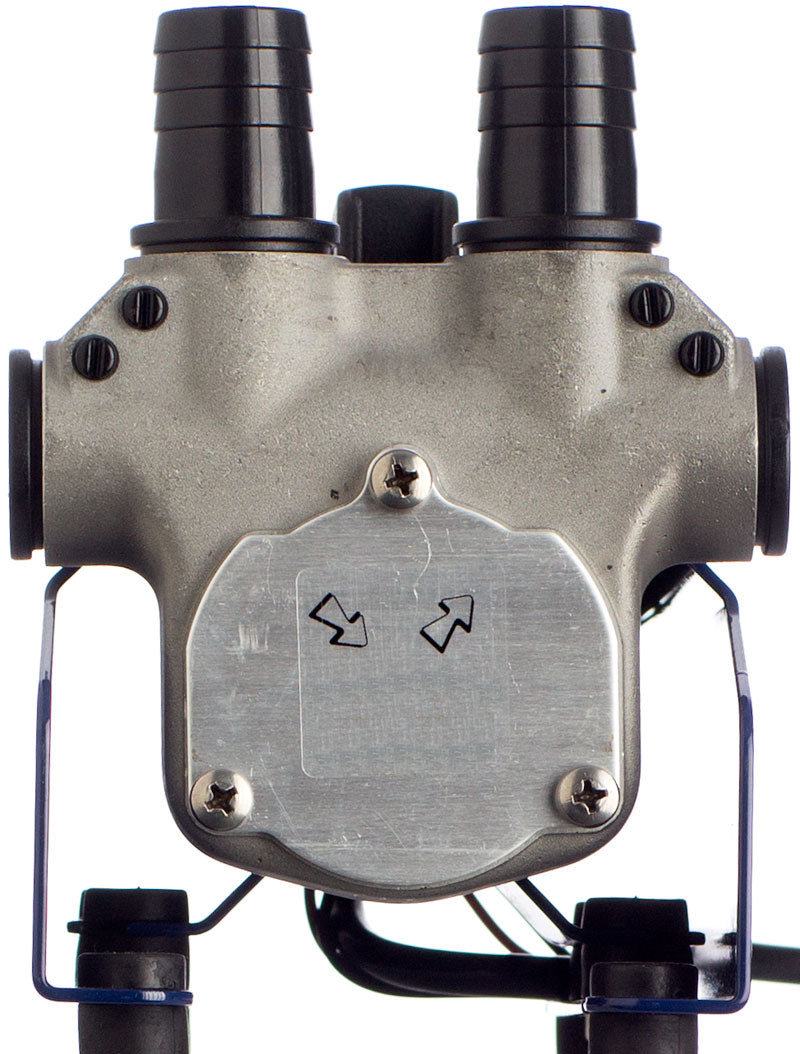

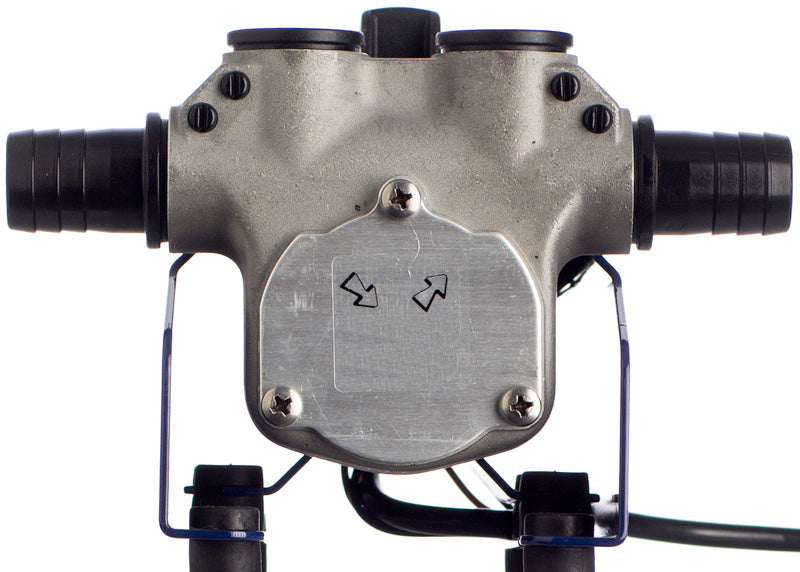

Two possible configurations are shown in the photos as examples.

You achieve the highest flow rate by mounting both hose connections facing upwards.

Technical data:

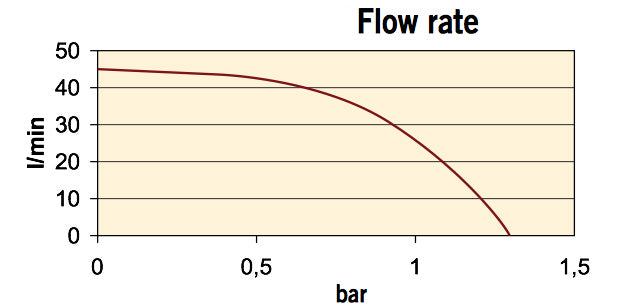

Flow rate max 50 l/min

the integrated bypass should not be used for longer than 3 minutes, otherwise the motor will overheat

max 1.2 bar

Self-priming over max. 1.50 m

Approved media: Water

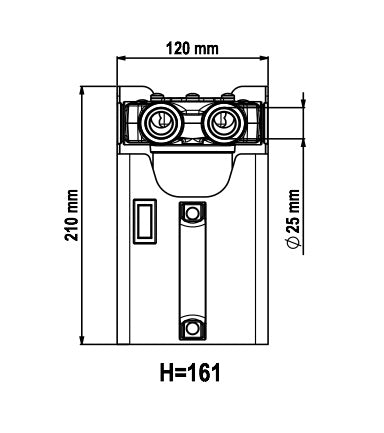

Hose nozzles with 25 mm - 1 inch outer diameter

Version: DC 12 Volt nominal voltage

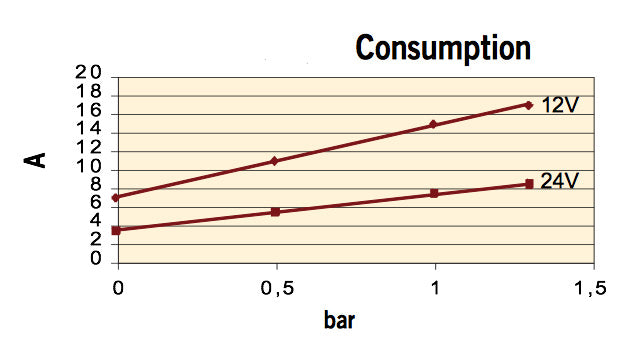

Starting current 19 A, continuous current 8 A

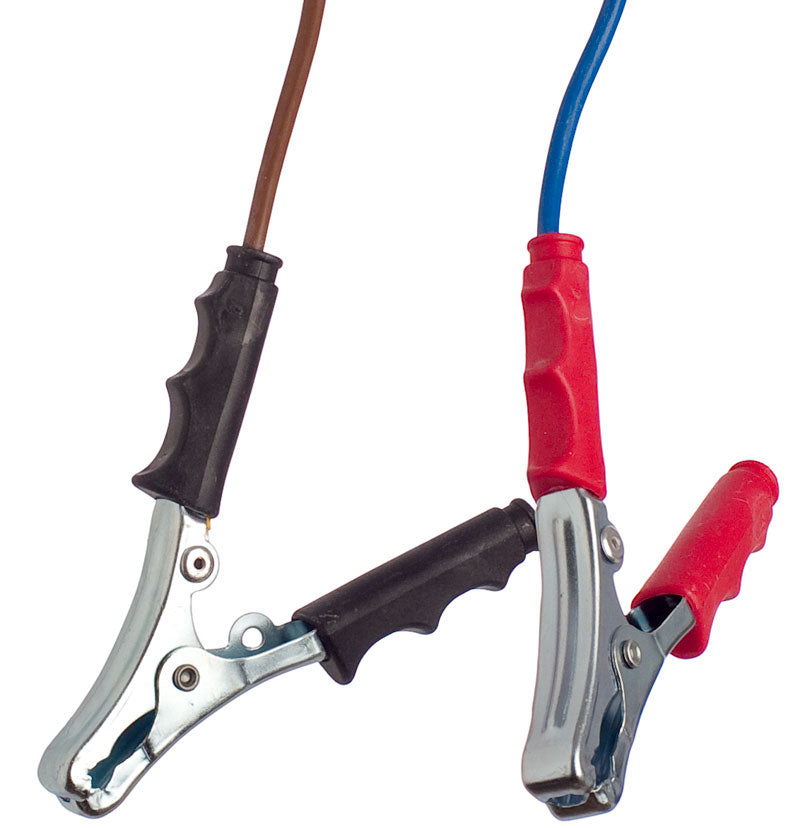

2.5 m power cable to the battery clamps with integrated 20 A fuse

Operating temperature - 10 ° C to max. + 60 ° C

Weight 3.3 kg
