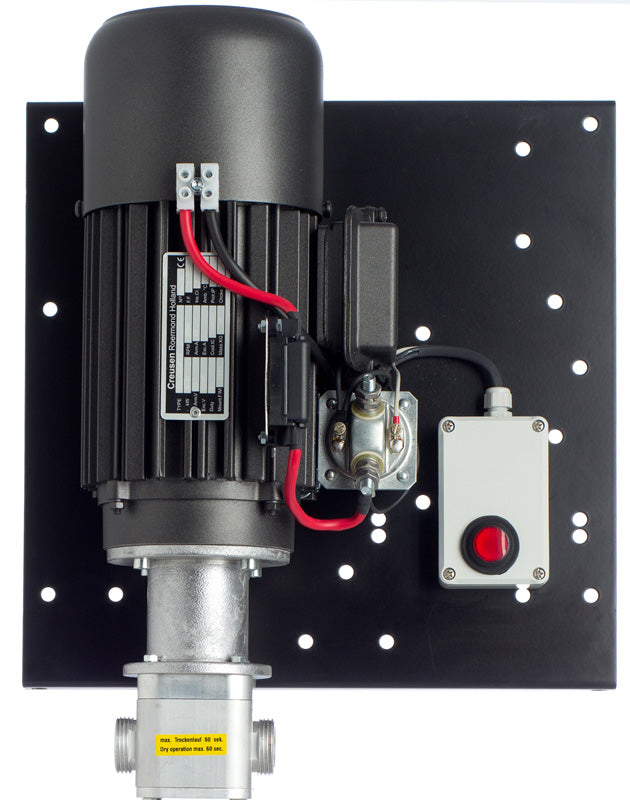

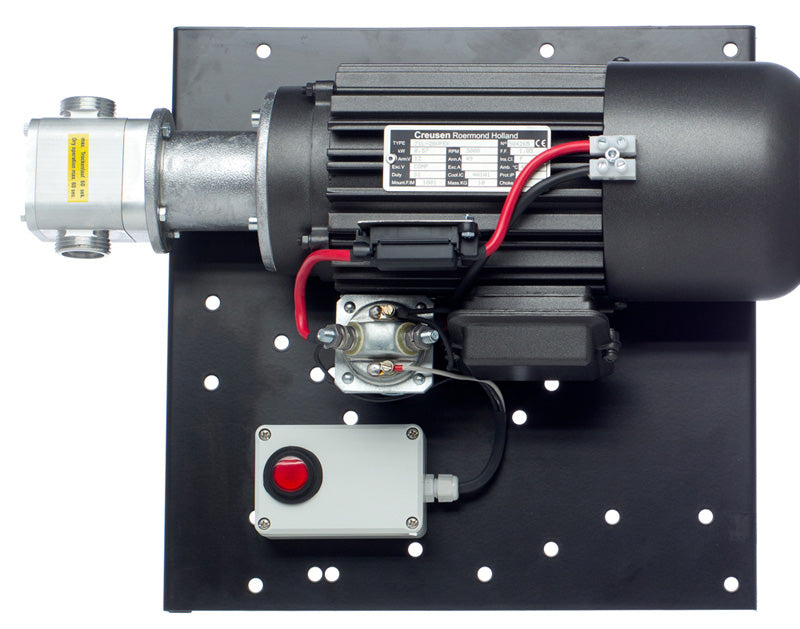

Impeller Pump 12 Volt, 60 l/min, 5 bar, Perbunan Impeller, Continuous Operation, Water

Impeller Pump 12 Volt, 30 l/min, 4 bar, Viton Impeller, Continuous Duty, Oils

This pump is suitable for pumping oils in continuous operation.

Solids in the media may be pumped along as long as they fit between the impeller vanes and are not abrasive.

A version for pumping media with abrasive components is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry running time for this pump type is a maximum of 1 minute.

Technical data:

Flow rate max 30 l/min

max. 3 bar

Operating temperature up to 90 ° C

Self-priming max 7 m height, dry 3 m height

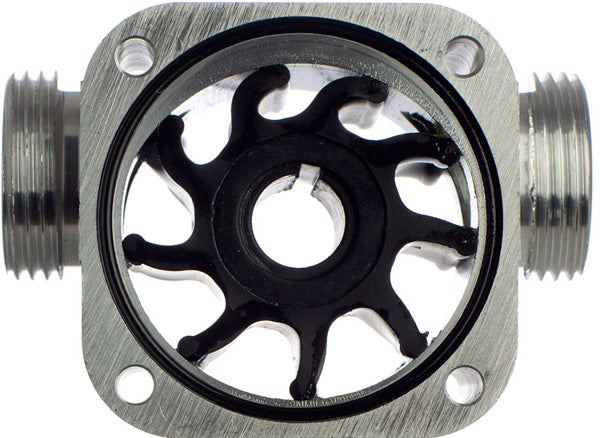

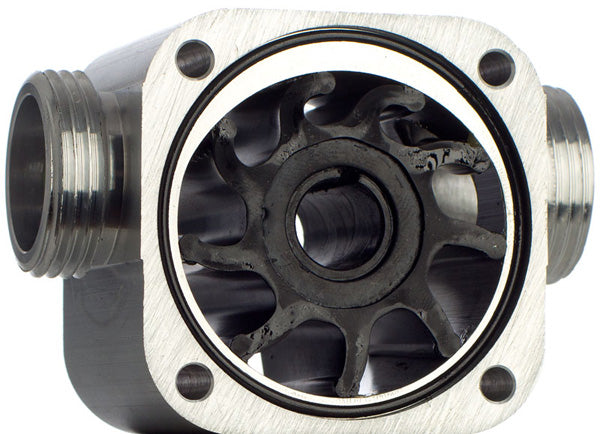

Impeller Viton

Pump housing Aluminum Al Mg Si 1

Pump shaft Stainless steel 1.4104

Threaded nozzles 1 inch male thread

max. 90 °C media temperature

Motor 0.37 kW

DC version 12 Volt nominal voltage, suitable for continuous duty

Speed 1500 rpm, 50 A

Protection class IP 55
