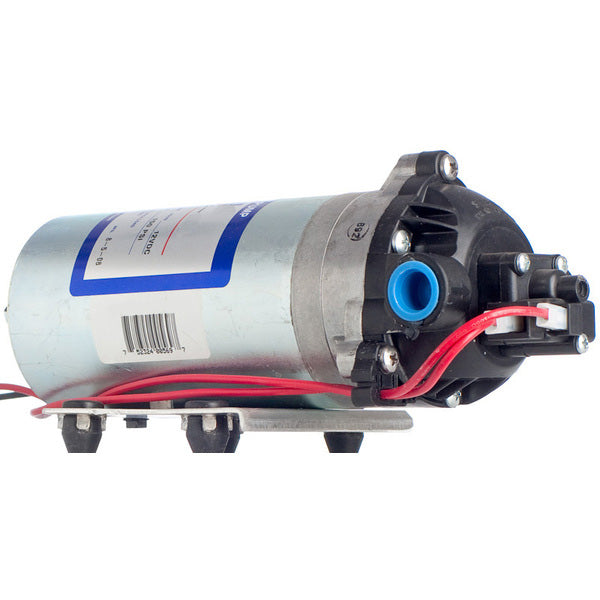

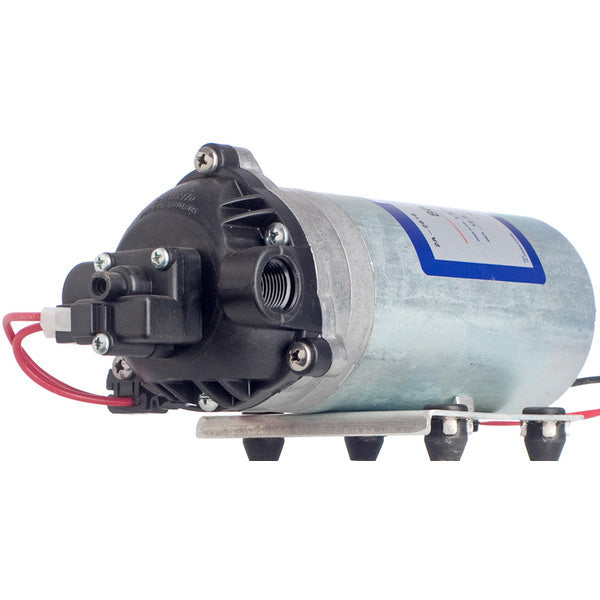

Pressure Diaphragm Pump 12 Volt, 6.8 l/min, max 6.9 bar, Intermittent Duty

Pressure Diaphragm Pump 12 Volt, 6.8 l/min, max 6.9 bar, Intermittent Operation

This diaphragm pump with pressure switch is used in industrial and agricultural technology.

Mainly, this diaphragm pump is used for pumping water.

However, the pump head also conveys all low-viscosity media that are compatible with the materials used in the pump.

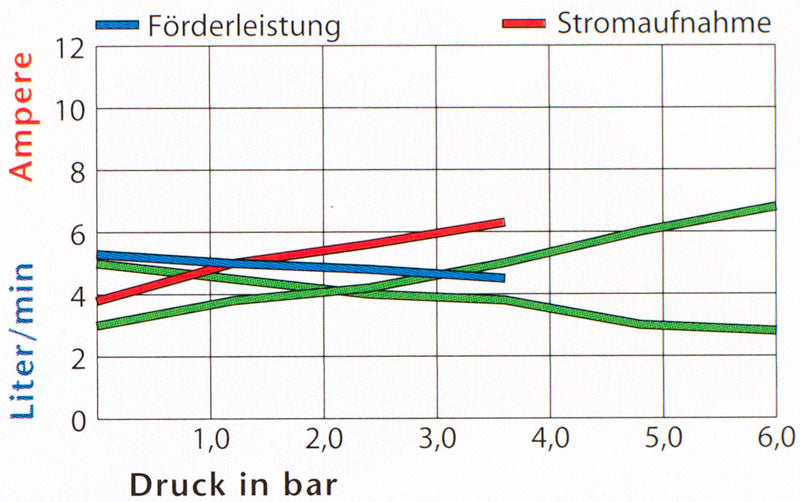

For the pressure level, refer to the upper green line in the diagram.

Technical data:

max 6.8 l/min

Double-sided female thread 3/8 NPT

Suction height dry max 3.1 m

Shut-off pressure 6.9 bar

max. motor temperature 65 Cº

max. media temperature 77 Cº

12 Volt motor, max. 6.2 A current consumption, average 4 A

Material pump head outside PP, inside VIT and SAN

the pump is designed for intermittent use

Dimensions 215x102x115

Weight 2.2 kg
