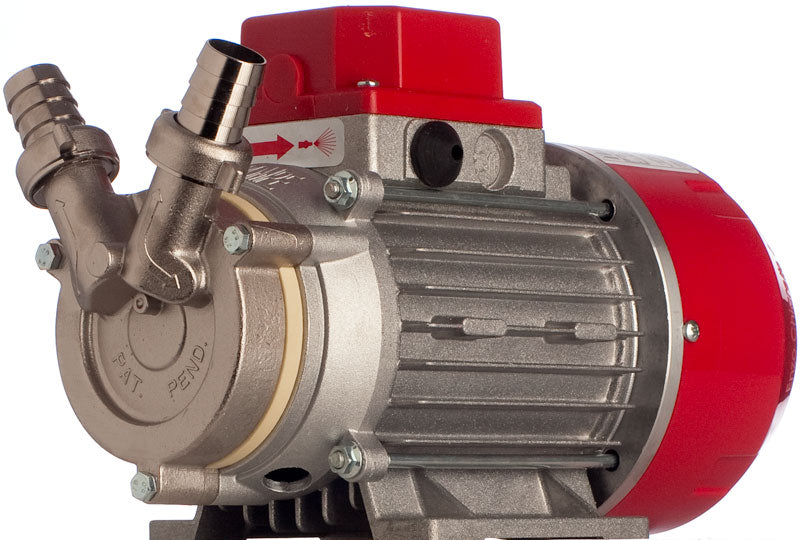

Side channel pump 12 Volt Reversible Stainless Steel max. 50 l/min

Side channel pump 12 Volt Reversible rotation Stainless steel max. 50 l/min The special feature of this pump is the possible reversal of the direction of rotation by swapping the positive and negative cables. Due to its design, the pump is dry-run safe. The side channel pump must be filled once with the medium to be pumped; it is then permanently self-priming, as liquid always remains in the pump. The pump type offers further design advantages:

• air suction is possible without damage to the impellers
• escape of the medium is prevented
• there is no contact between the medium and the motor
• low speed with high liter capacity
• due to the distance between the pump casing and the motor, little medium temperature is transferred to the motor

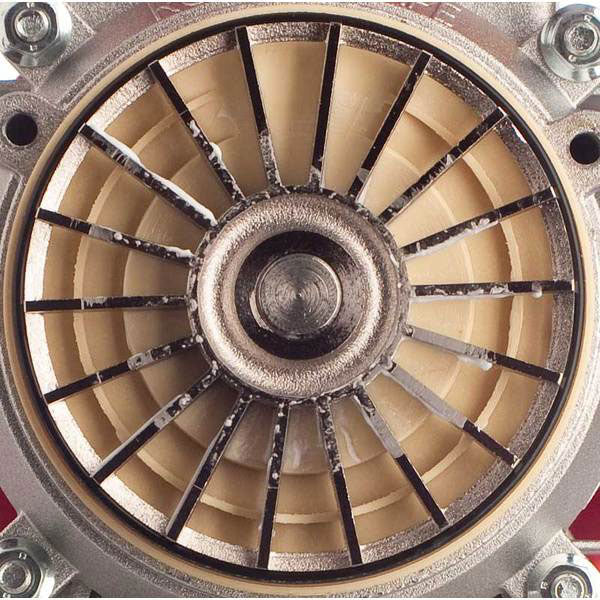

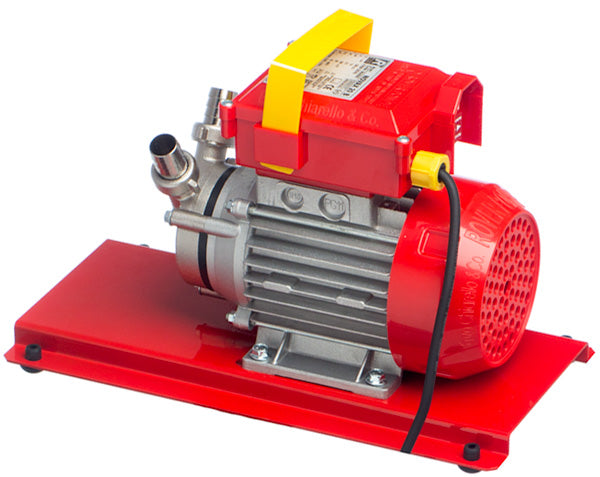

This pump is suitable, for example, for transferring food into various tanks if only 12-volt on-board voltage is available. Optionally, you can receive the depicted mounting plate for all red side channel pumps. This frame facilitates the use of mobile pumps and provides adequate support for the pump with attached hoses in stationary operation. Approved media: All types of food, such as fodder syrup, milk, wine, oil, fruit juices Seawater, liquid fertilizer, and corrosive chemicals The media to be pumped must not contain abrasive substances. In this case, the pump must be equipped with a suitable filter. Forbidden media: Gasoline, acetone, solvents, etc., i.e., all operating fluids that require EX equipment. The viscosity must not be higher than max. 30 mm²/s. The medium temperature must be below 36 ° C. Technical data: Flow rate (measured with water) max 50 l/min max. 10 m delivery head Self-priming max. 6 m height Threaded nozzles 1 inch, 25 mm Pump casing and impeller made of stainless steel, shaft stainless steel, AISI 304 Motor 0.45 kw Protection class IP X 4 2500 rpm DC 12 Volt DC nominal voltage version 72 dB Dimensions: 230 x 120 x 190 mm Weight: 7 kg
