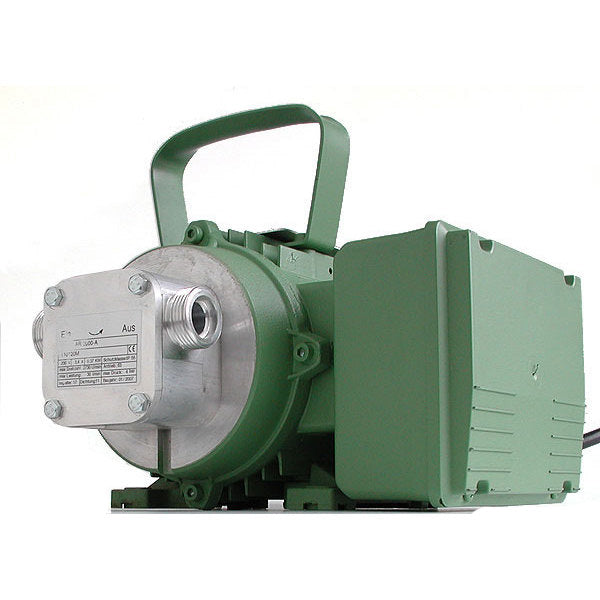

Impeller Pump 230 Volt, 30 l/min, 4 bar, Plastic Impeller, Diesel, Heating Oil, Mineral Oil

Impeller Pump 230 Volt, 30 l/min, 4 bar, Plastic Impeller, Diesel, Heating Oil, Mineral Oil

This pump is suitable for pumping water, mineral and vegetable oils, diesel, heat transfer fluid, and antifreeze.

Solids in the media can be pumped along as long as they fit between the impeller vanes and are not abrasive.

A version for pumping media with abrasive components is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry run duration for this pump type is a maximum of 1 minute.

Technical Data:

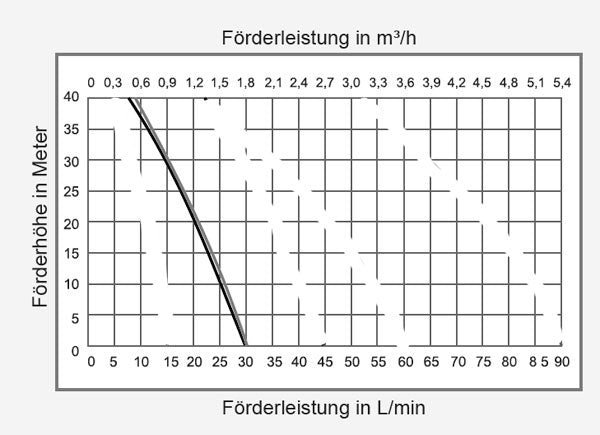

Flow rate max 30 l/min

max. 4 bar

Self-priming max 7 m height, dry 3 m height

Impeller plastic (NBR)

Pump housing aluminum Al Mg Si 1

Pump shaft stainless steel 1.4104

Threaded nozzles 3/4 inch internal thread

The plastic impeller is suitable for the following media:

Water, mineral and vegetable oils, diesel, heat transfer fluid, antifreeze

Small solid particles can be pumped with the impeller. The fluid must not contain abrasive substances.

max. 60 °C medium temperature

Motor 0.37 kw

AC version 230 Volt nominal voltage

Speed 2800 U/min or optionally 1400 U/min

Protection class IP 55

Dimensions: 290 x 170 x 230 mm

Weight 9 kg
