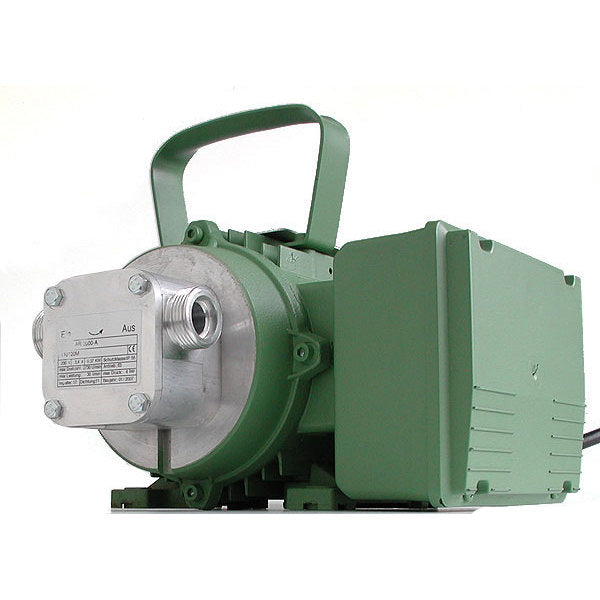

Impeller pump 230 Volt, 60 l/min, 4 bar, plastic impeller, diesel, heating oil, mineral oil

Impeller pump 230 volt, 60 l/min, 4 bar, plastic impeller, diesel, heating oil, mineral oil

This pump is suitable for pumping water, mineral and vegetable oils, diesel, heat transfer fluid, and antifreeze.

Solids in the media may be pumped along as long as they fit between the impeller vanes and are not abrasive. A version for pumping media with abrasive components is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry running time for this pump type is a maximum of 1 minute.

Technical data:

Flow rate max 60 l/min

max 4 bar

Self-priming max 7 m head

Impeller plastic

Pump housing aluminum Al Mg Si 1

Pump shaft stainless steel 1.4104

1 inch external thread

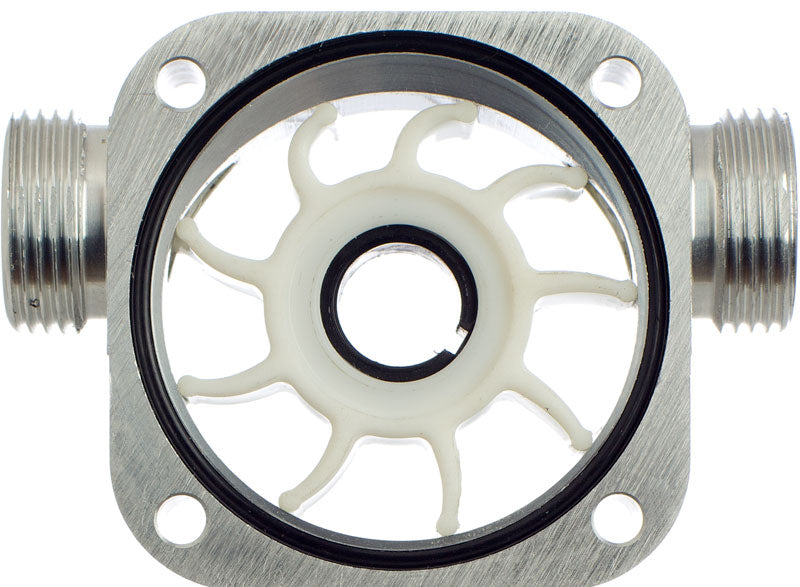

The plastic impeller is suitable for the following media:

Water, mineral and vegetable oils, diesel, heat transfer fluid, antifreeze

Small solid particles can be pumped along in the impeller. The fluid must not contain abrasive substances.

max. 60 °C media temperature

Motor 0.55 kw

AC version 230 volt nominal voltage

Speed 2800 rpm or optionally 1400 rpm

Protection class IP 55

Dimensions: 290 x 170 x 230 mm

Weight 9 kg
