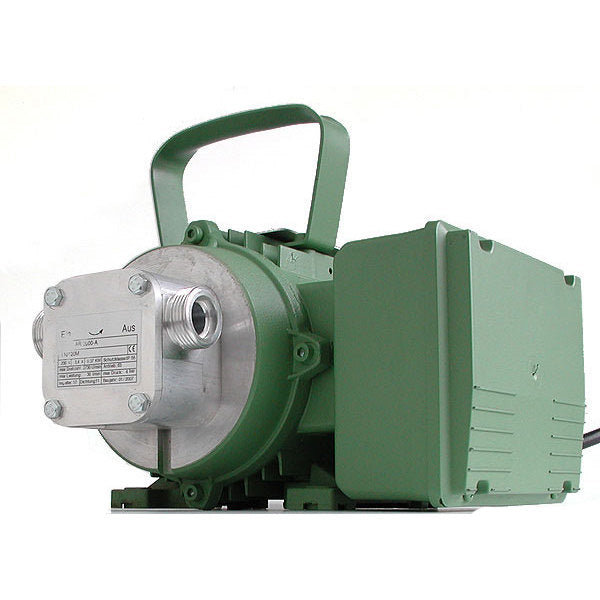

Impeller Pump 230 Volt, max. 30 l/min, max. 5 bar, Perbunan Impeller, Water

Impeller Pump 230 Volt, 30 l/min, 5 bar, Perbunan Impeller, water, heat transfer fluids, vegetable oils

This pump is suitable for pumping water, heating oil, vegetable oils, cleaning agents, and heat transfer fluids for solar systems.

Solids may be conveyed with the media as long as they fit between the impeller vanes and are not abrasive. A version for pumping media with abrasive components is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry run duration for this pump type is a maximum of 1 minute.

Technical data:

Flow rate max 30 l/min

max. 5 bar

Self-priming max 7 m height, dry 3 m height

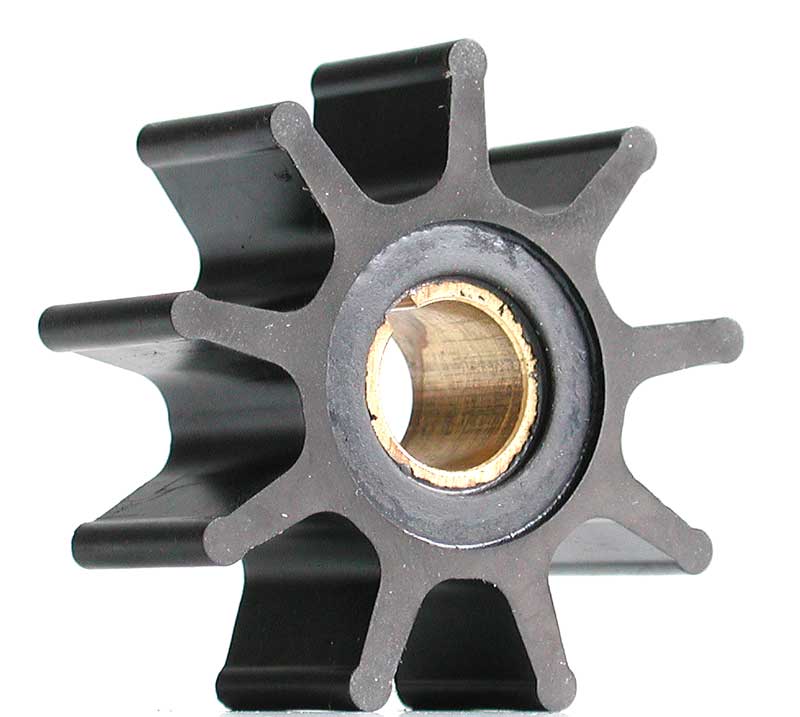

Impeller Perbunan (NBR)

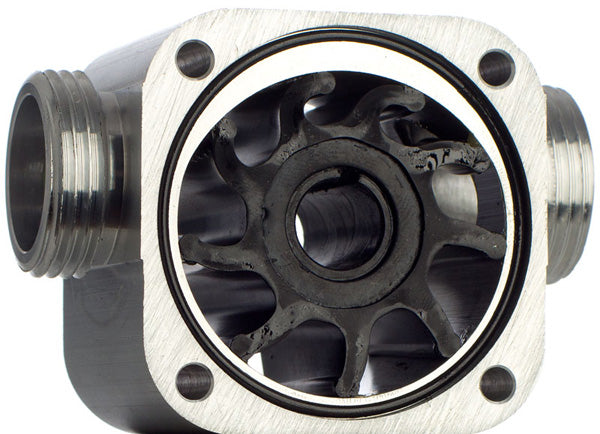

Pump housing Aluminum Al Mg Si 1

Pump shaft Stainless steel 1.4104

Threaded fittings 3/4 inch external thread

The Perbunan impeller is suitable for the following media:

Service water, vegetable oils, cleaning agents, solar system heat transfer fluids, antifreeze

Small solid particles can be conveyed in the impeller. The fluid must not contain abrasive substances.

max. 90 °C media temperature

Motor 0.37 kW

AC version 230 Volt nominal voltage

Speed 2800 U/min

Protection class IP 55

Dimensions: 290 x 170 x 230 mm

Weight 9 kg
