€424,40
Taxes included.

Shipping calculated at checkout.

  • SKU: FP-230-Perbunan-60l/min
People are currently viewing this
Select The Options Above
Description

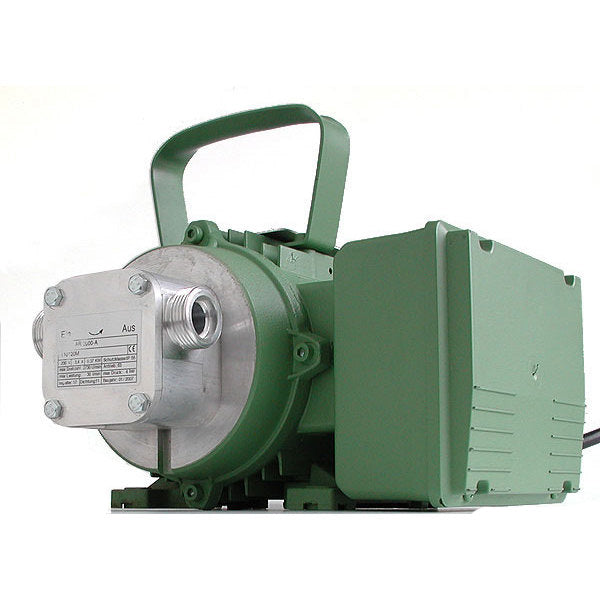

Impeller Pump 230 Volt, 60 l/min, 5 bar, Perbunan Impeller, water, heat transfer fluids, vegetable oils
This pump is suitable for pumping water, heating oil, oils, cleaning agents, and heat transfer fluids for solar systems.

Solids in the media may be pumped along as long as they fit between the impeller vanes and are not abrasive. A version for pumping media with abrasive components is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry running time for this pump type is a maximum of 1 minute.

Technical data:

Flow rate max 60 l/min

max 5 bar

Self-priming max 7 m height

Impeller Perbunan

Pump housing Aluminum Al Mg Si 1

Pump shaft Stainless steel 1.4104

Threaded nozzles 1 inch internal thread

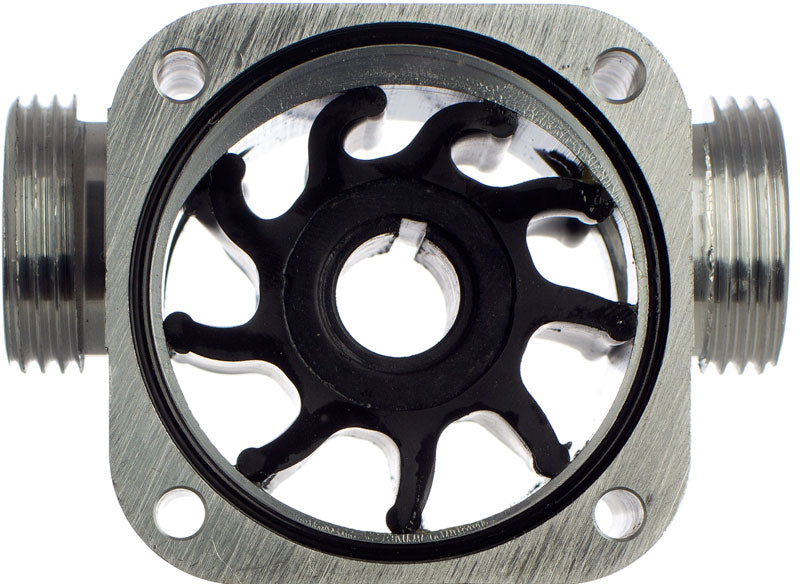

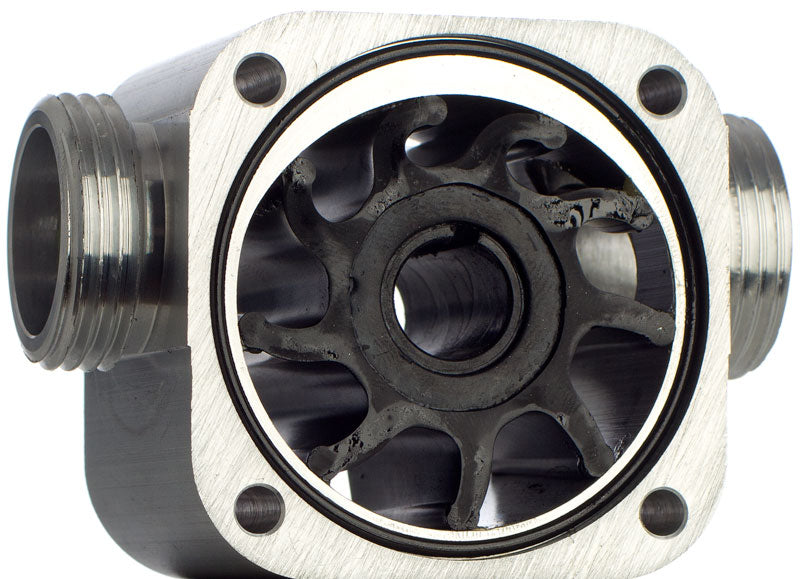

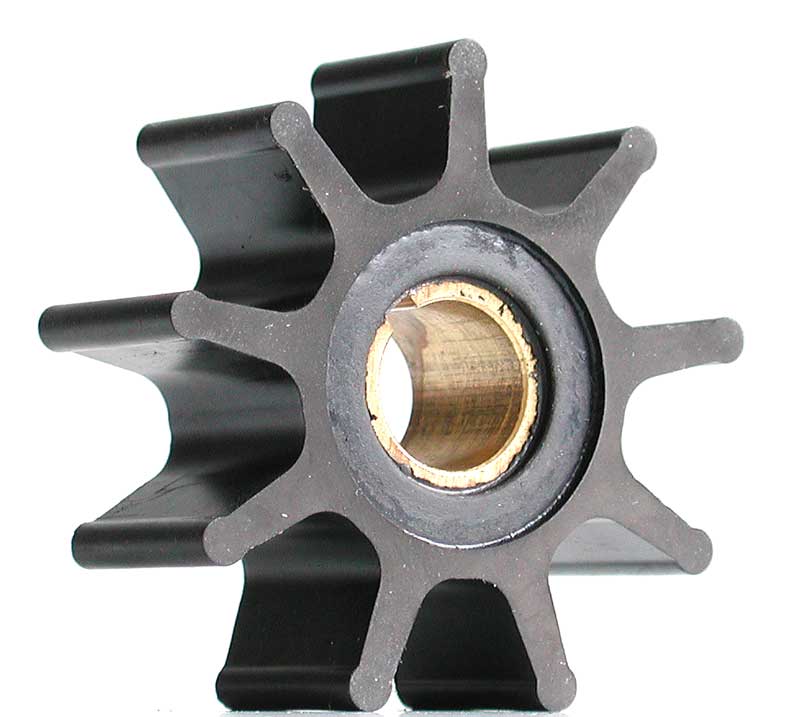

The Perbunan impeller is suitable for the following media:

Service water, seawater, vegetable oils, cleaning agents, solar system heat transfer fluids, antifreeze

Small solid particles can be pumped along in the impeller. The fluid must not contain abrasive substances.

max. 90 °C media temperature

Motor 0.55 kW

AC version 230 Volt nominal voltage

Speed 2800 rpm or optionally 1400 rpm

Protection class IP 55

Dimensions: 290 x 170 x 230 mm

Weight 9.2 kg
