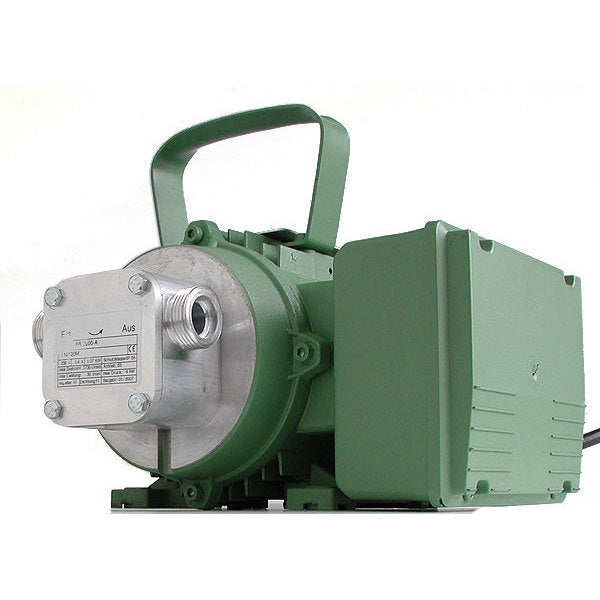

Impeller pump 230 volts, max. 30 l/min, max. 3 bar, Viton impeller

Impeller Pump 230 Volt, max. 30 l/min, max. 3 bar, Viton Impeller

This pump is suitable for pumping water, heating oil, oils, and cleaning agents.

Solids may be pumped as long as they fit between the impeller vanes and are not abrasive. A version for pumping media with abrasive components is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry running time for this pump type is a maximum of 1 minute.

Technical data:

Flow rate max 30 l/min

max. 3 bar

Self-priming max 7 m height, dry 3 m height

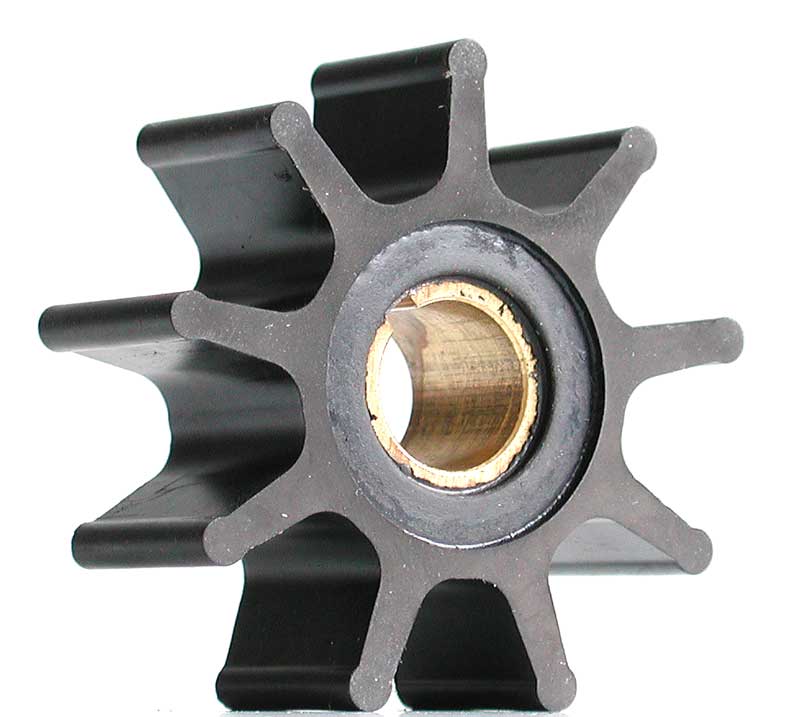

Impeller Viton (FKM)

Pump casing Aluminum Al Mg Si 1

Pump shaft Stainless steel 1.4104

3/4 inch external thread

The Viton impeller is suitable for the following media:

Service water, vegetable oils, cleaning agents, antifreeze, and all media compatible with Viton and aluminum

Small solid particles can be pumped with the impeller. The fluid must not contain abrasive substances.

max. 90 °C media temperature

Motor 0.37 kW

AC version 230 Volt nominal voltage

Speed 2800 rpm

Protection class IP 55

Dimensions: 290 x 170 x 230 mm

Weight 9.4 kg
