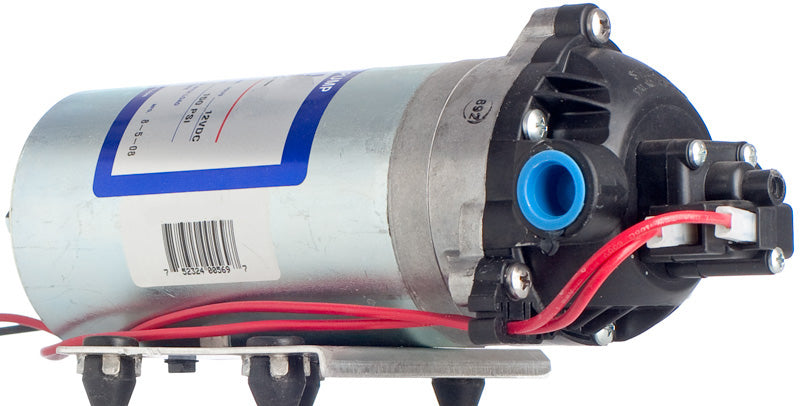

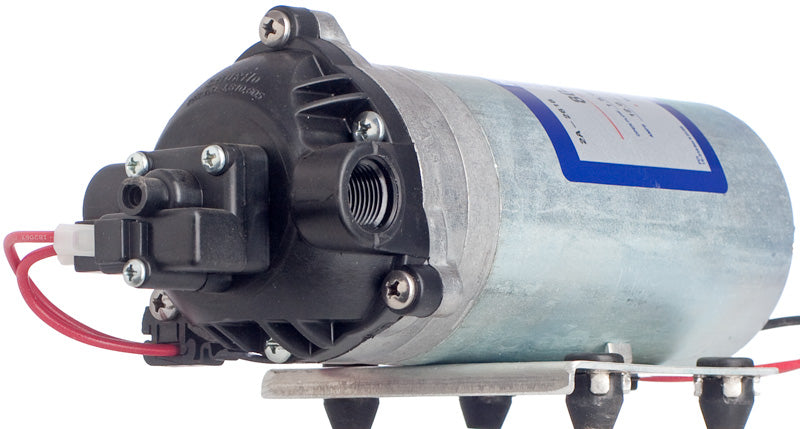

Pressure diaphragm pump 230 Volt, 4.5 l/min, max 4.1 bar, interval operation

Pressure diaphragm pump 230 Volt, 4.5 l/min, max 4.1 bar, intermittent operation

This high-pressure diaphragm pump is used in industry and agricultural technology.

This diaphragm pump is mainly used for pumping water. You can find this diaphragm pump, for example, in working machines for spray applications.

However, the pump head also conveys all low-viscosity media that are compatible with the materials used in the pump.

Examples include alcohol and antifreeze

Technical data:

max 4.5 l/min

Double-sided internal thread 3/8 NPT

Suction height dry max 2.2 m

Cut-off pressure 4.1 bar

Restart pressure 3.2 bar

Check valve built-in.

max medium temperature 77 Cº

230 Volt motor, max 0.3 A current consumption

Material pump head outside PP, inside EPD and SAN

Intermittent operation of max. 40 min continuous operation

Dimensions 221x110x105

Weight 1.8 kg
