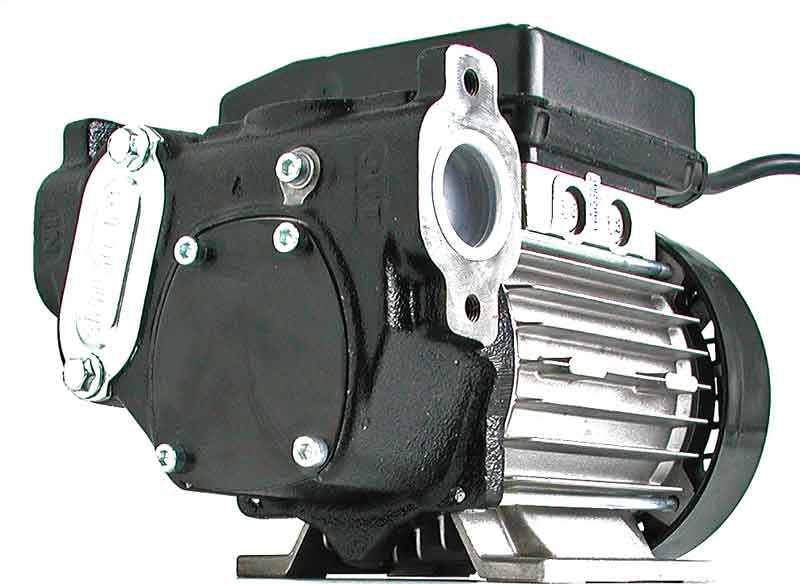

Diesel transfer pump, 230 Volt, 72 l/min, 1.8 bar, bypass, suitable for nozzle operation

Diesel transfer pump, 230 Volt, 72 l/min, 1.8 bar, bypass, suitable for use with a nozzle

Electric displacement pump with vanes in 230 Volt version.

The pump is suitable, for example, for transferring diesel into various tanks.

The built-in bypass valve allows for use as a dispensing pump and ensures operational safety even when the outlet is closed.

A built-in 100 µm filter is integrated into the front of the pump for easy maintenance.

To prevent the pump from running dry and to ensure fast filling, it is recommended to install a non-return valve with a suction strainer.

We would also be happy to assemble a complete set for you with suction and pressure hoses according to your measurements.

Technical data:

Flow rate max 72 l/min

Speed 2800 U/min

max 1.8 bar

self-priming, max. 3 m

Threaded nozzles 1 inch female thread, flange connection

Approved medium Diesel

Motor 0.55 kw

Version AC 230 Volt rated voltage

Suitable for continuous operation

Protection class IP 55

Weight 7.9 kg

Dimensions:

195 x 355 x 270 mm
