Diesel Transfer Pump, 230 Volt, 95 l/min, 1.6 bar, Bypass, Suitable for Nozzle Operation

Diesel transfer pump, 230 Volt, 95 l/min, 1.6 bar, bypass, suitable for operation with nozzle

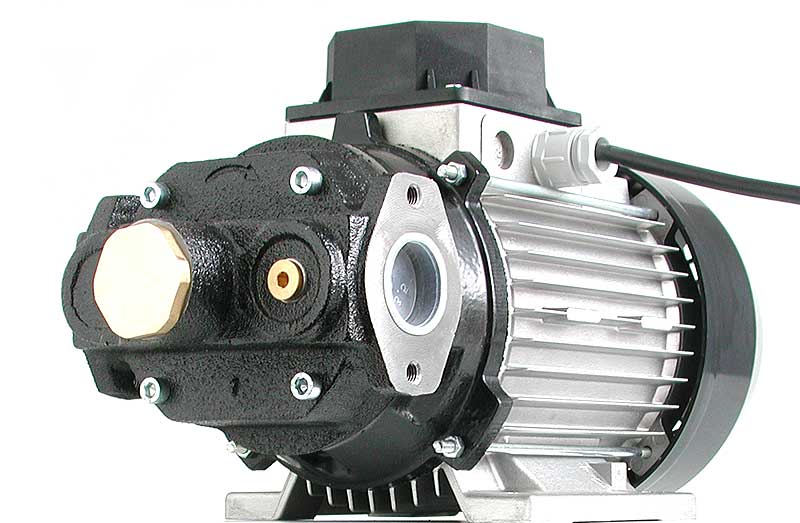

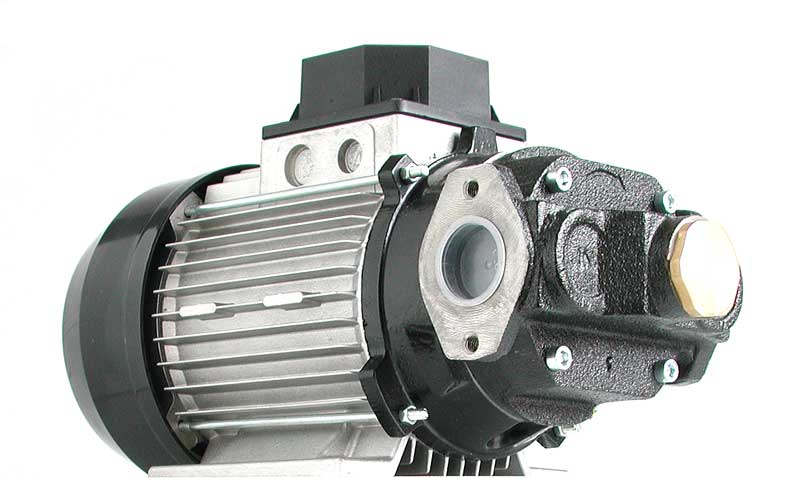

Electric positive displacement pump with vanes in 230 Volt version.

The pump is suitable, for example, for transferring diesel/RME (biodiesel) into various tanks.

The built-in bypass valve allows use as a dispensing pump and ensures operational safety even with a closed outlet.

To prevent the pump from running dry and to ensure quick filling, it is recommended to install a non-return valve with a suction strainer.

We would also be happy to put together a complete set for you with suction and pressure hoses according to your specifications.

Technical data:

Flow rate max 95 l/min

Speed 1400 U/min

max 1.6 bar

self-priming max 4.5 m

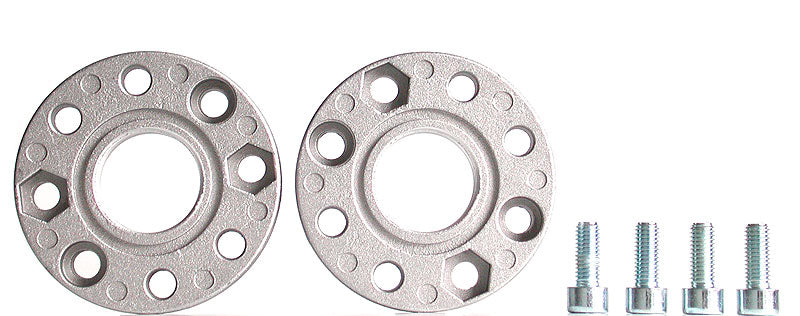

Threaded connections 1 inch internal thread, 1 inch flange

Approved medium Diesel/RME (Biodiesel)

Motor 0.750 kw

Version AC 230 Volt nominal voltage

Suitable for continuous operation

Protection class IP 55

Weight 15.6 kg

Dimensions:

195 x 355 x 270 mm
