Side channel pump, 230 Volt, self-priming, adjustable bypass 13 to 28 l/min, Bronze

Side channel pump, 230 Volt, self-priming, adjustable bypass 13 to 28 l/min, bronze

Side channel pump with 230 volts, max. 28 l/min and reversible rotation.

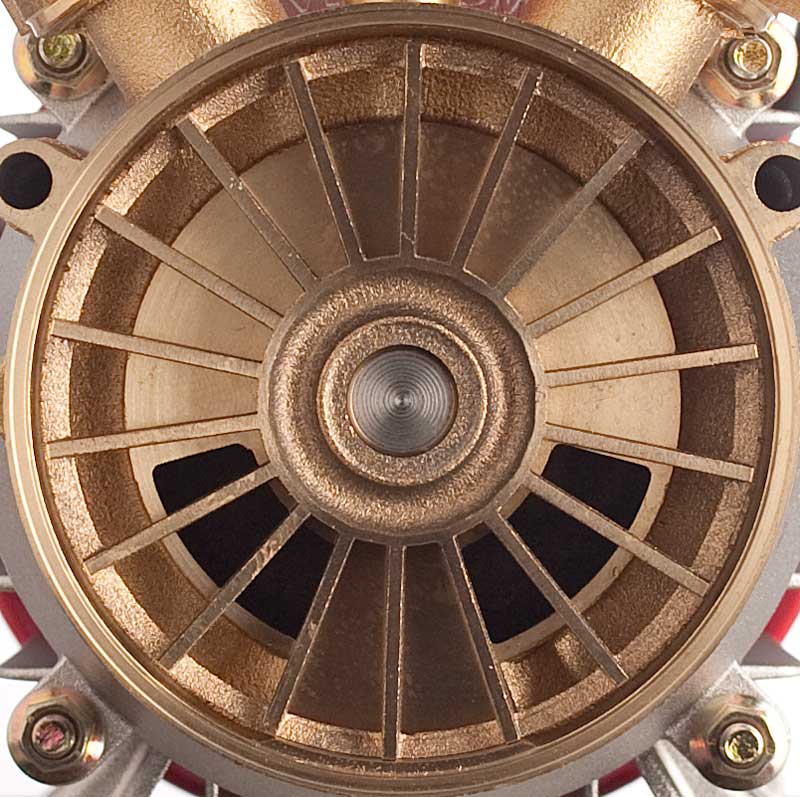

The special feature of this pump is the controllable manual bypass. The flow rate can thus be continuously regulated from 13 to 28 l/min.

Due to its design, the pump is dry-run safe and also offers the option of reversing the direction of rotation. It can therefore suck and also press without changing the hoses. The switch for this is embedded in the electrical housing and enables easy operation.

The side channel pump must be filled once with the medium to be conveyed; then it is permanently self-priming, as liquid always remains in the pump.

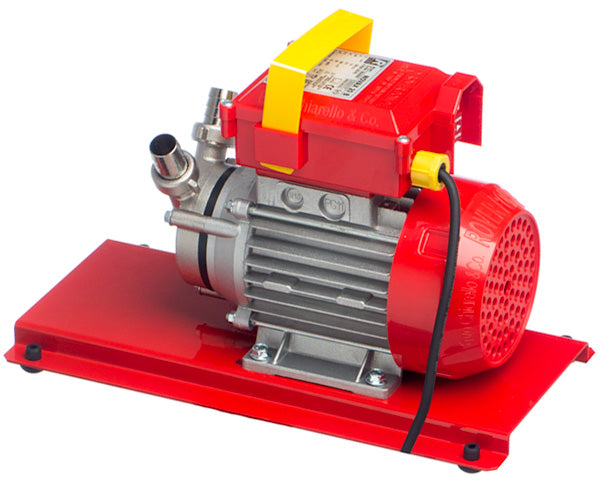

Optionally, you can get the mounting plate shown for all red side channel pumps.

This frame facilitates the use of mobile pumps and provides adequate support for the pump with attached hoses in stationary operation.

The pump type offers further design advantages:

air can be drawn in without damage to the impellers
escape of the medium is prevented
there is no contact between the medium and the motor
low speed with high flow rate

This pump is suitable, for example, for transferring olive oil into various tanks.
Further applications include operation in wine filtration or the transfer of lubricating oils, soaps and water.

Technical data:

Flow rate (measured with water)

28 l/min - discharge head 1 m
20 l/min - discharge head 12 m

Approved media:

Diesel, vegetable oil, lubricating oil, soaps, water and bronze-compatible liquids

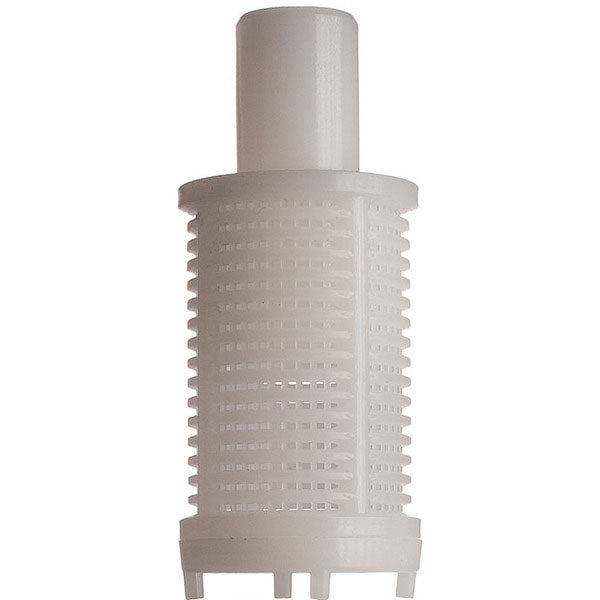

The media to be conveyed must not contain abrasive substances. In this case, the pump must be equipped with a suitable filter.

The viscosity must not exceed max. 30 mm²/s.

The medium temperature must be below 36 °C.

Technical data:

AC version 230 Volt nominal voltage

Flow rate min. 13 l/min - max 28 l/min

max 2 bar

Self-priming 6 m height

Pump housing and impeller made of bronze, shaft stainless steel

Seals NBR

Threaded nozzles 3/4 inch internal thread with 20 mm hose connection

Motor 0.37 kw and 1.8 A

79 dB

Dimensions: 230 x 120 x 190 mm

5 kg
