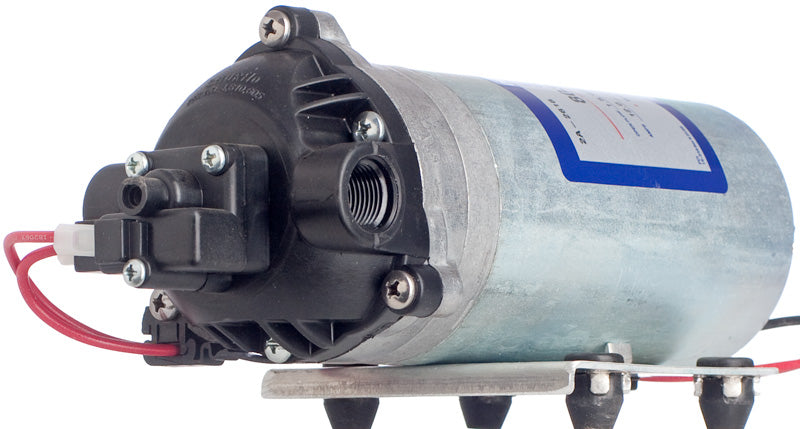

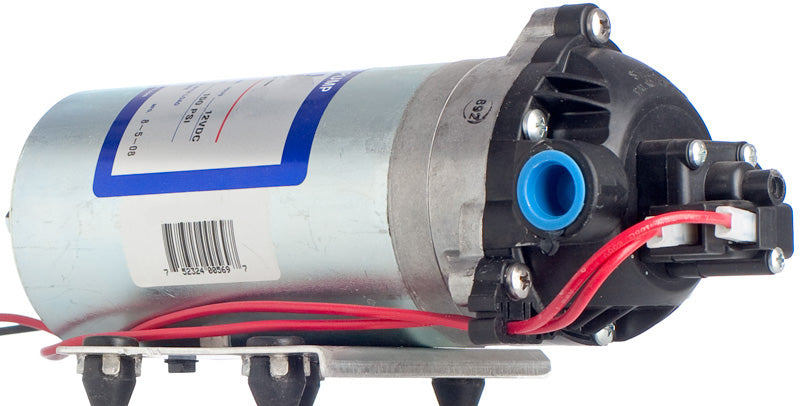

Pressure diaphragm pump 24 Volt, 6.1 l/min, max 7 bar, intermittent operation

Pressure diaphragm pump 24 Volt, 6.1 l/min, max 7 bar, intermittent operation

This high-pressure diaphragm pump is used in industry and agricultural technology.

Mainly, this diaphragm pump is used for pumping water. You can find this diaphragm pump, for example, in work machines for spraying applications.

The diaphragm pump is also used as a washer fluid pump in excavators and trucks in open-cast coal mining.

However, the pump head also pumps all low-viscosity media that are compatible with the materials used in the pump.

Examples include alcohol and antifreeze

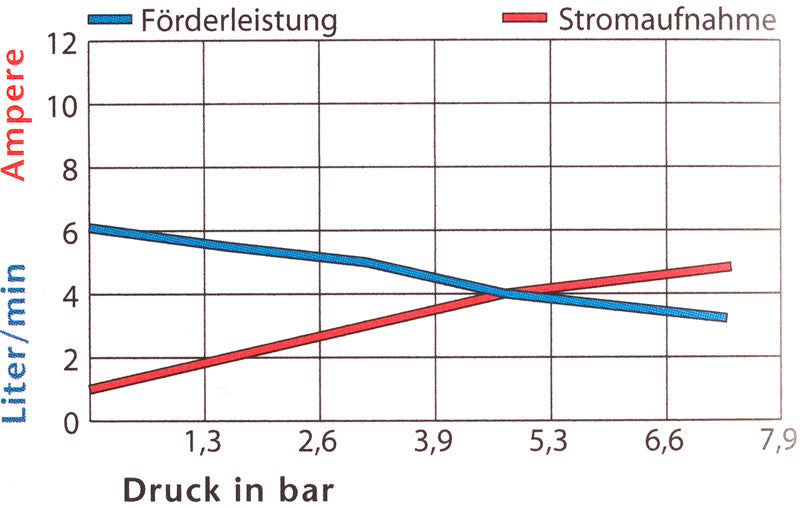

Technical data:

max 6.1 l/min

Double-sided internal thread 3/8 NPT

Dry suction height max 3.8 m

Shut-off pressure 6.9 bar

Restart pressure 1.8 bar

Check valve built-in.

max motor temperature 85 Cº

max media temperature 82 Cº

24 Volt motor, max 5 A current consumption

Material pump head outside NL, inside EPD and SAN

Intermittent operation of max. 40 min continuous operation

Dimensions 210x155x110

Weight 2.2 kg
