Description

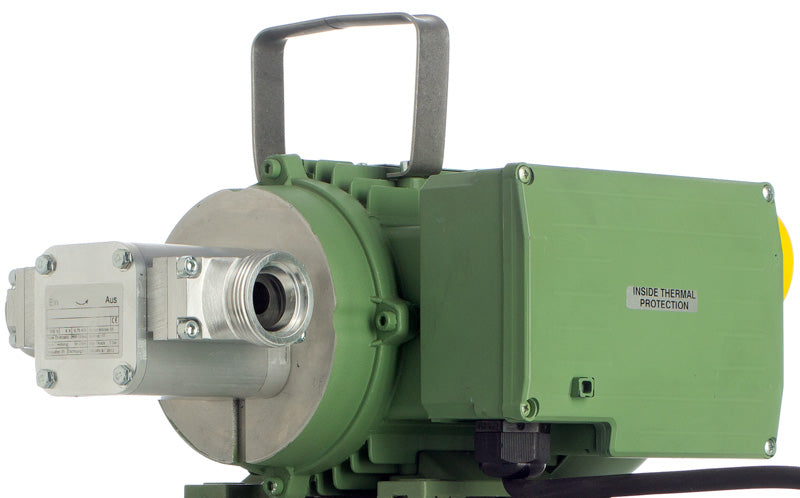

Impeller Pump 400 Volt, 90 l/min, 5 bar, Perbunan Impeller, water, heat transfer fluids, vegetable oils

This pump is suitable for pumping water, heating oil, oils, detergents, and heat transfer fluids in solar systems.

Solids in the media may be conveyed as long as they fit between the impeller blades and are not abrasive. A version for pumping media with abrasive constituents is available upon request.

The pump is dry self-priming up to 3 m depth, otherwise up to 7 m.

The dry run duration for this pump type is a maximum of 1 minute.

Technical data:

Flow rate max 90 l/min

max. 5 bar

Self-priming max 7 m height

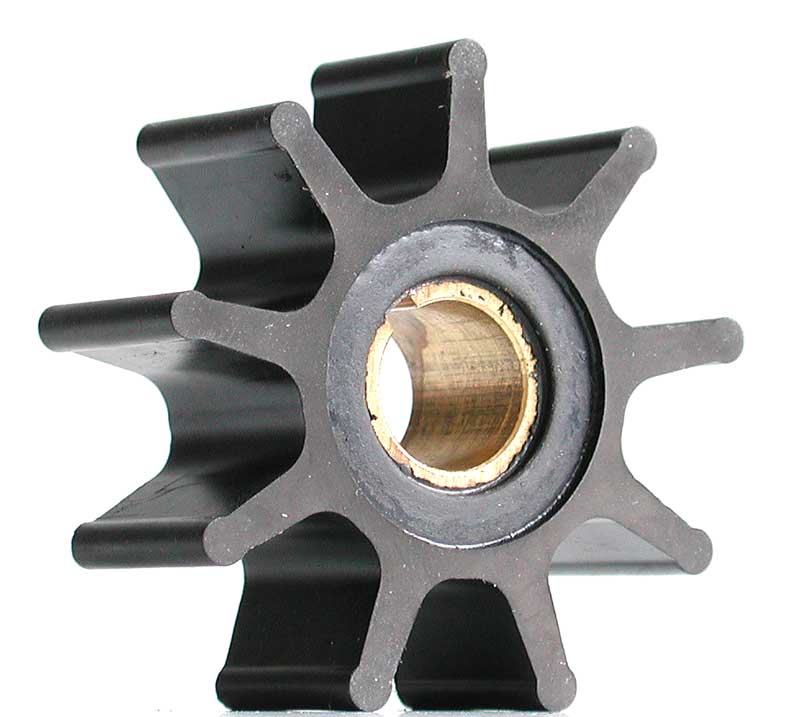

Impeller Perbunan

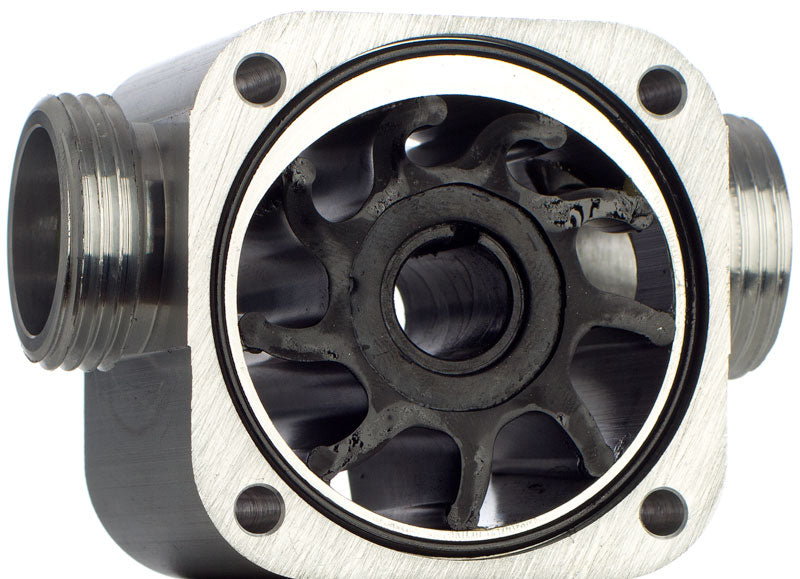

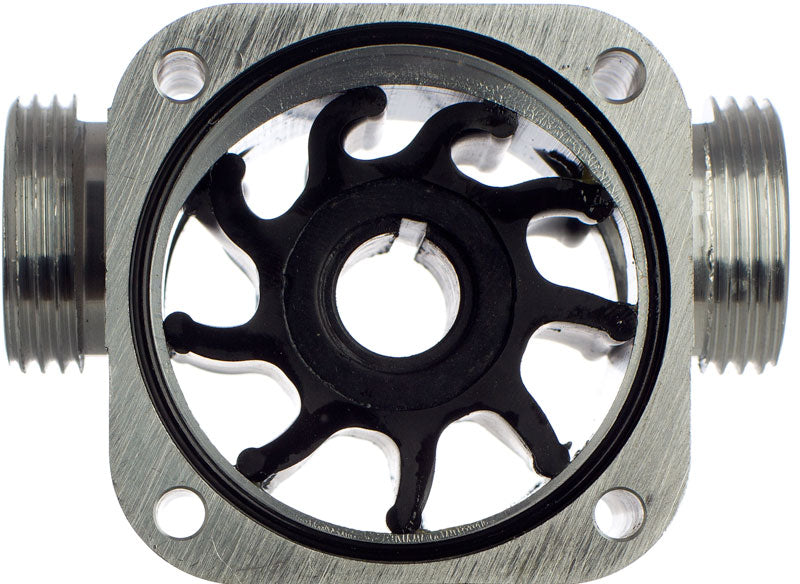

Pump housing Aluminum Al Mg Si 1

Pump shaft Stainless steel 1.4104

Threaded nozzles 1 1/4 inch internal thread

Approved media:
Service water, heating oil, diesel, oil, detergents, solar system heat transfer fluids, antifreeze

max. 90 °C media temperature

Motor 1.1 kW

Three-phase version 400 Volt nominal voltage

Protection class IP 55

Speed max. 2800 rpm

Dimensions: 290 x 170 x 230 mm

Weight 13 kg
