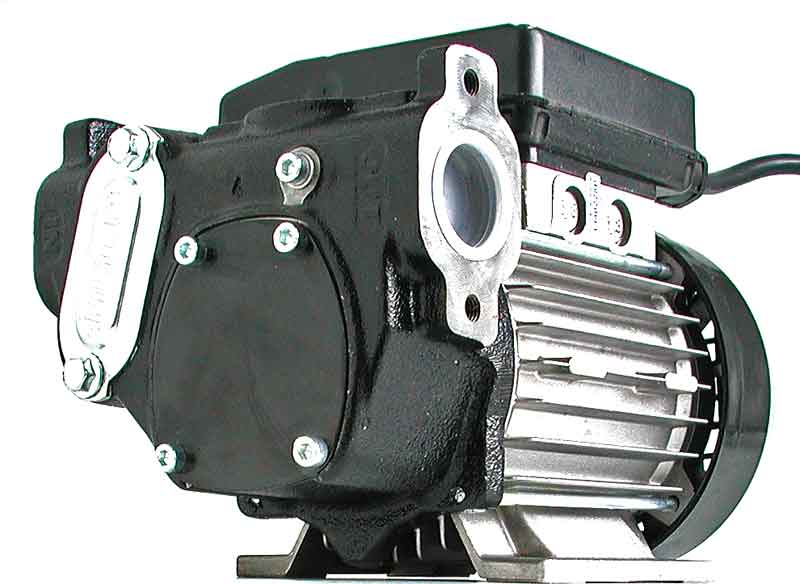

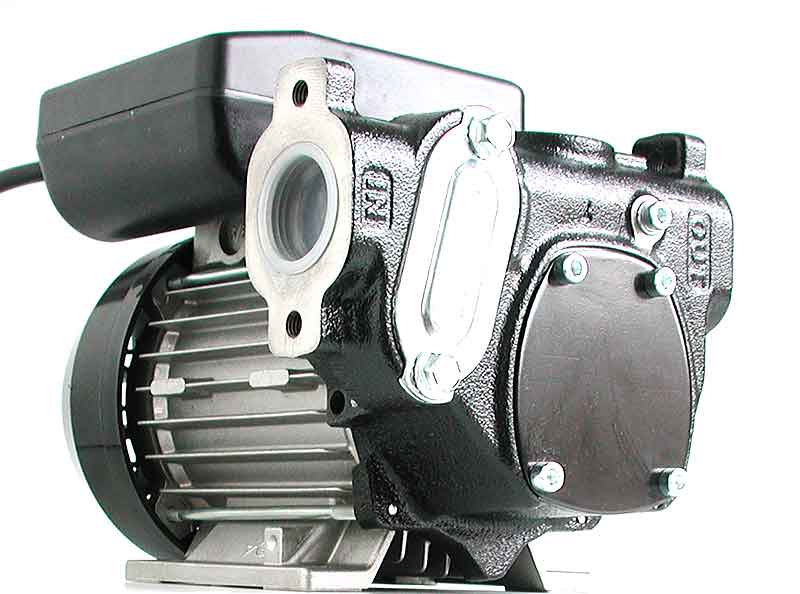

Diesel Tank Pump, 400 Volt, 56 l/min, 1.5 bar, Bypass, suitable for operation with nozzle

Diesel tank pump, 400 Volt, 56 l/min, 1.5 bar, bypass, suitable for operation with a nozzle

Electric positive displacement pump with vanes in 400 Volt version.

The pump is suitable, for example, for transferring diesel into various tanks.

The built-in bypass valve allows for use as a dispensing pump and ensures operational safety even with a closed outlet.

A built-in 100-micron filter is integrated on the front of the pump for easy maintenance.

To prevent the pump from running dry and to ensure fast filling, it is recommended to install a non-return valve with a suction strainer.

We would also be happy to assemble a complete set with suction and pressure hoses according to your specifications.

Technical data:

Flow rate max 56 l/min

Speed 2800 rpm

max 1.5 bar

self-priming, max. 3 m

Threaded nozzles 1 inch internal thread

Approved medium Diesel

Motor 0.370 kw

Version 400 Volt rated voltage

Suitable for continuous operation

Protection class IP 55

Weight 7.4 kg

Dimensions:

195 x 355 x 270 mm
