AdBlue pump, 230 volt, 35 l/min, 1.5 bar, self-priming

AdBlue Pump 230 Volt, 35 l/min, 1.5 bar, self-priming

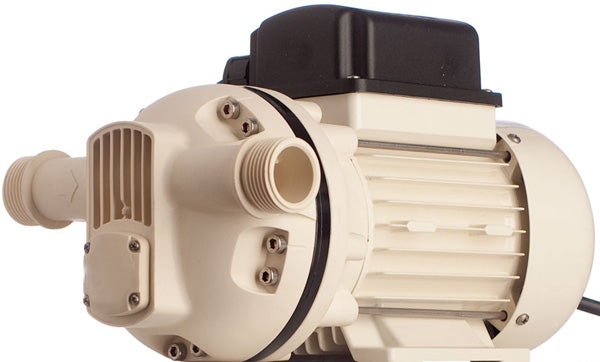

This diaphragm pump is used for refueling Euro 5 vehicles with the urea solution AdBlue.

When the AdBlue nozzle is closed, the pump's integrated bypass operates, ensuring trouble-free refueling.

The materials used for the pump parts that come into contact with AdBlue are specifically designed for the urea solution.

The AdBlue pump must be protected from frost, as AdBlue crystallizes when frozen and damages the pump.

If the pump is not used for more than 15 consecutive days, the piping system and the pump must be flushed with water.

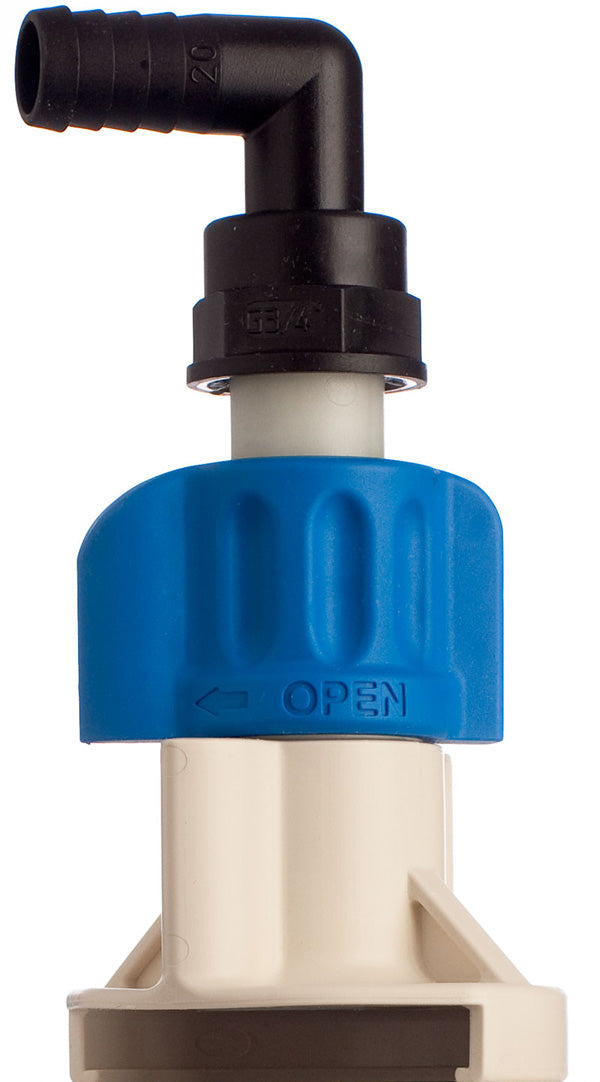

Optionally, you can see the SEC adapter pictured. Further accessories available upon request.

Technical data:

max 35 l/min

max 1.5 bar

Suction height max 2 m

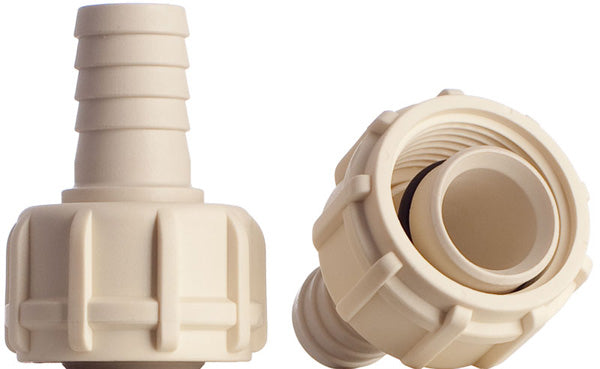

double-sided hose nozzles with 3/4 inch outlet, 19 mm spout are included

EPDM membrane

Motor 230 Volt 50 HZ max 1.5 A

ON OFF switch

2 m cable

Intermittent operation of max. 20 min continuous operation

Dimensions 350x180x280

Weight 7 kg
