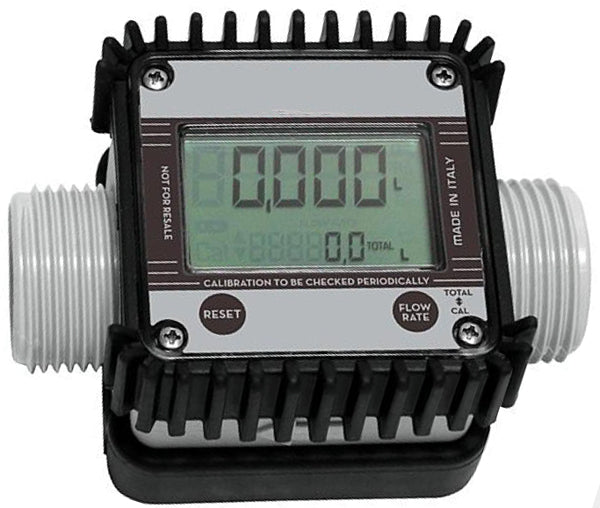

AdBlue Meter, Digital Flow Meter, Liter Counter 100 l/min

AdBlue counter, digital flow meter, liter counter 100 l/min

Flow measurement using a turbine system.

The materials used in the liter counter that come into contact with Adblue are specially designed for urea solution.

The display can be rotated for easy reading in all mounting positions.

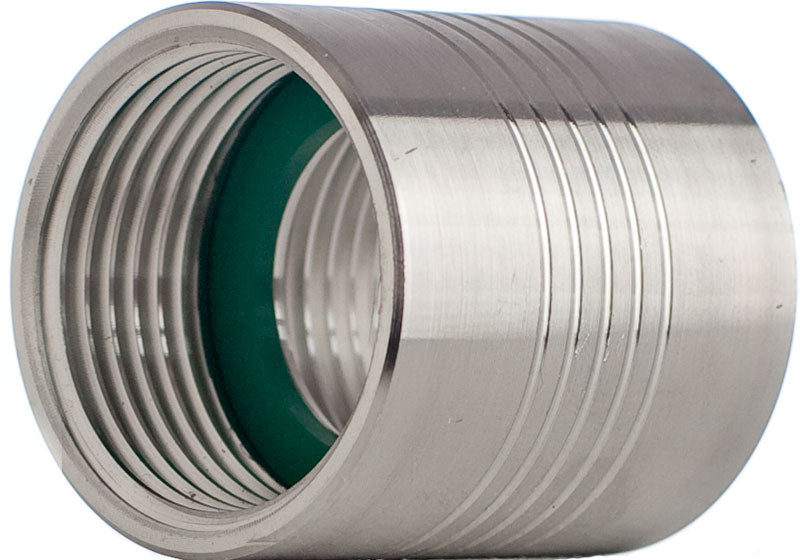

The counter comes with the illustrated 1-inch socket with seal, in case an internal thread connection is desired.

Of course, the counter can also be mounted at the pump outlet.

Medium: AdBlue

Connections in flow direction 1 inch male thread to 1 inch male thread

min 5 l/min

max. 100 l/min

Operating pressure max. 20 bar

Burst pressure 40 bar

5-digit partial quantity from 0.1 to 99999

6-digit total quantity from 1 to 999999

resettable total quantity

+-1 % accuracy

calibratable

2 AAA batteries

reinforced polyamide housing

polypropylene turbine, AISI 316 shaft

ceramic ball

polypropylene ball holder

polypropylene diffuser

Operating temperature -10 °C to +50 °C

Protection class IP 65

Weight 226 g
