AdBlue pump 230 Volt, 35 l/min, 1.5 bar, 200 l drum set

Adblue Pump 230 Volt, 35 l/min, 1.5 bar, 200 l Barrel Set

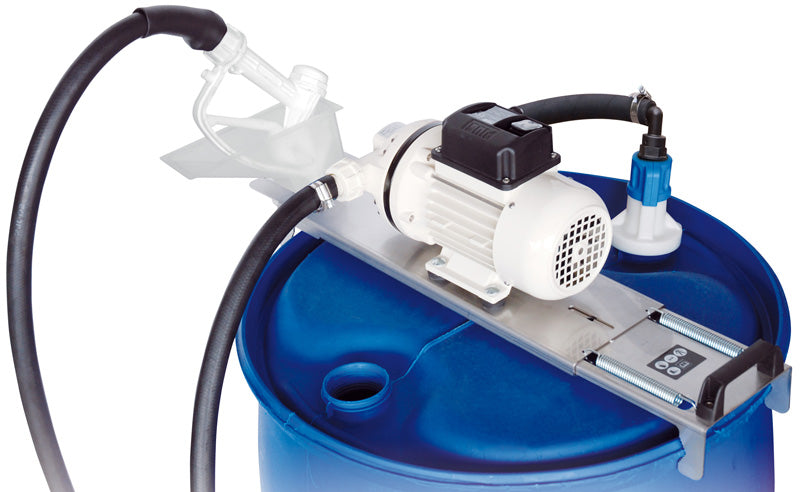

Complete set, as pictured, with manual nozzle.

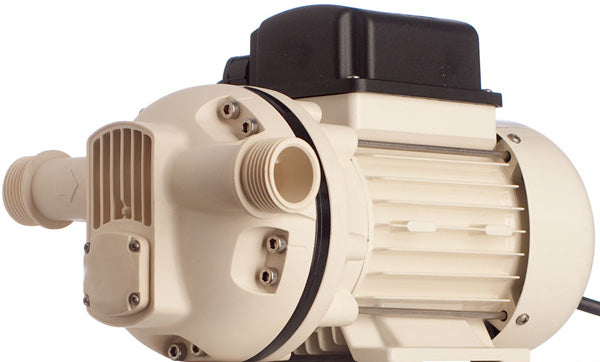

This diaphragm pump is used for refueling Euro 5 vehicles with the urea solution AdBlue.

When the Adblue nozzle is closed, the pump's integrated bypass operates, ensuring trouble-free refueling.

The materials used for the pump parts that come into contact with Adblue are specifically designed for the urea solution.

The AdBlue pump must be protected from frost, as Adblue will crystallize and damage the pump.

If the pump is not used for more than 15 consecutive days, the piping system and the pump must be flushed with water.

- with bracket for 200 l barrel

- Dispensing hose 6 meters

- Suction hose with SEC quick coupling and base plate for mounting on
a barrel

- Suction pipe for urea with SEC/CDS lid

Technical data:

max 35 l/min

max 1.5 bar

Suction height max 2 m

double-sided hose nipples with 3/4 inch outlet

EPDM diaphragm

Motor 230 Volt 50 HZ max 1.5 A

ON OFF switch

2 m cable

Intermittent operation of max. 20 min continuous operation

Dimensions 350x180x280

Weight 15.5 kg
