Fuel Hose, Fuel Line, 10 mm, Rubber

Fuel hose, gasoline hose, diesel, 10 mm inner diameter, 15.5 mm outer diameter, rubber

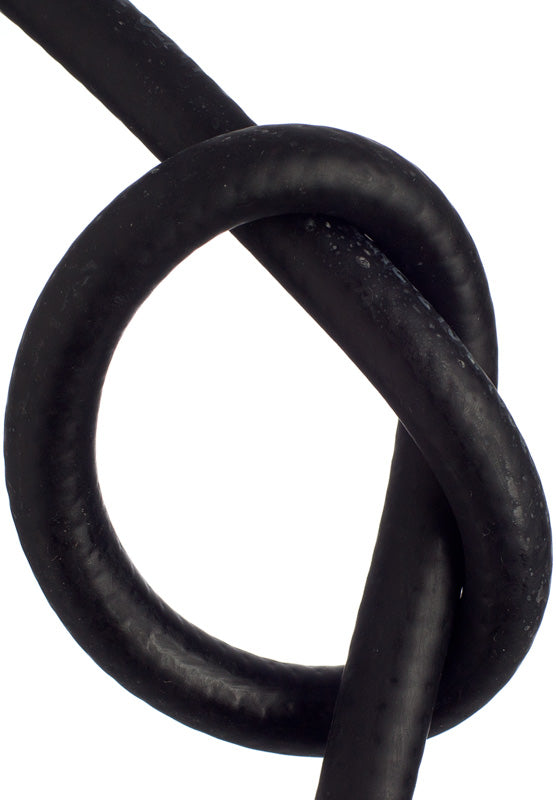

This fuel hose is highly elastic and can be laid in tight radii, as the example photo with the knot shows.

We know of no better fuel hose; the product is manufactured in Germany.

The fuel hose is suitable for commercially available fuels, especially for premium gasoline with a maximum benzene content of 50%, and for E10.

For these media, the following temperature resistance applies: -30° C/+50° C as media temperature.

When operating with water, air, and heating oil EL, the temperature resistance is specified as -30° C/+90° C as media temperature.

If diesel fuel with RME additive is used, a temperature resistance of -30° C/+70° C applies as media temperature.

The fuel hose complies with DIN 73379-2A.

Inner diameter 9.5 mm

Outer diameter 15.5 mm

Inner layer NBR, reinforcing layer polyester, outer material CR

Max. working pressure 6 bar, test pressure 20 bar, burst pressure 30 bar

Largest continuous length in one piece 20 m

Minimum bending radius is 80 mm

Weight 200 g/m

The price is per meter of hose. Minimum purchase quantity 1 meter.
