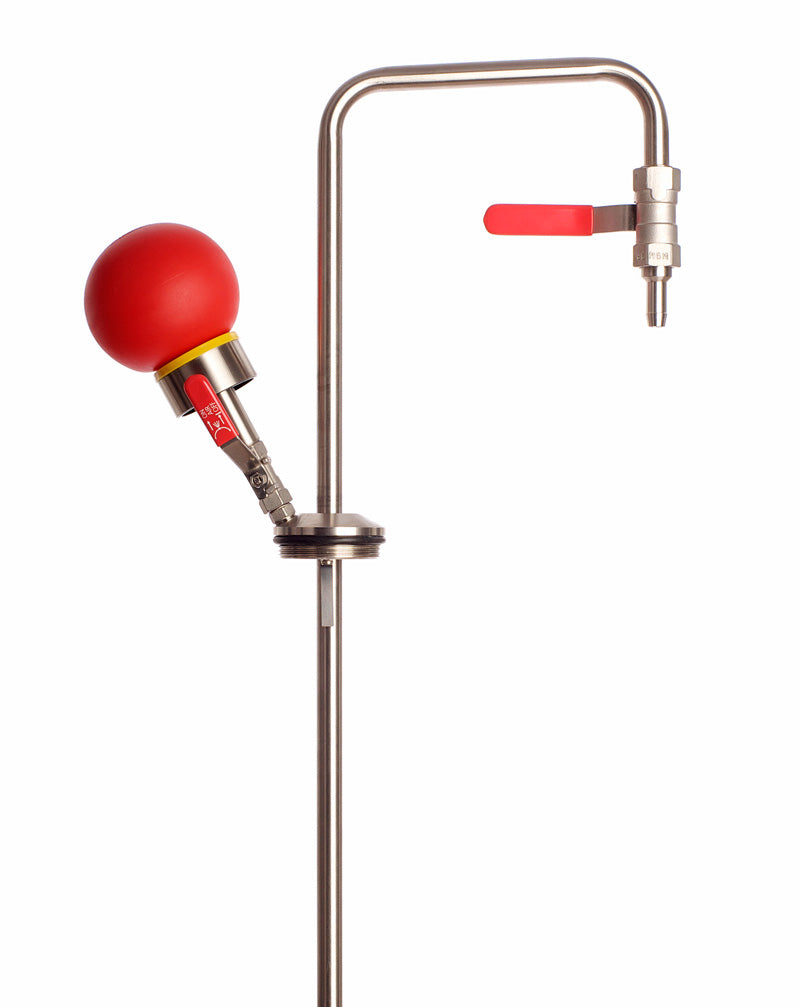

Drum pump, manual operation for solvents, discharge spout, max. 60 L drums

Barrel pump, manual operation for solvents, discharge spout, max. 60 L barrels

This stainless steel barrel pump for manual operation comes complete with a gas-tight barrel adapter R2 inch.

In conjunction with the anti-static set, which is available as an accessory, the pump meets the requirements for filling flammable liquids.

Contamination-free extraction of organic solvents and flavorings is guaranteed.

The immersion depth of the solvent pump can be continuously adjusted to suit different container sizes.

The gas-tight screw connection for R 2 inch threads, in conjunction with the two shut-off valves, effectively seals the container. The escape of vapors is therefore prevented.

This solvent pump for manual operation is manufactured for industrial use.

To underscore this, a 5-year warranty is provided on the product.

Only food-grade materials are used.

DEKRA has tested this hand pump and approved it for EX protection zones 0 and 1. Explosion groups II A and II B.

Technical details:

Immersion tube diameter 32 mm

Immersion depth max 60 l barrels

max. 10 l/min

gas-tight barrel adapter R2 inch

electrically conductive

shut-off valves VA with Teflon seal

Discharge spout diameter 12.8 mm
