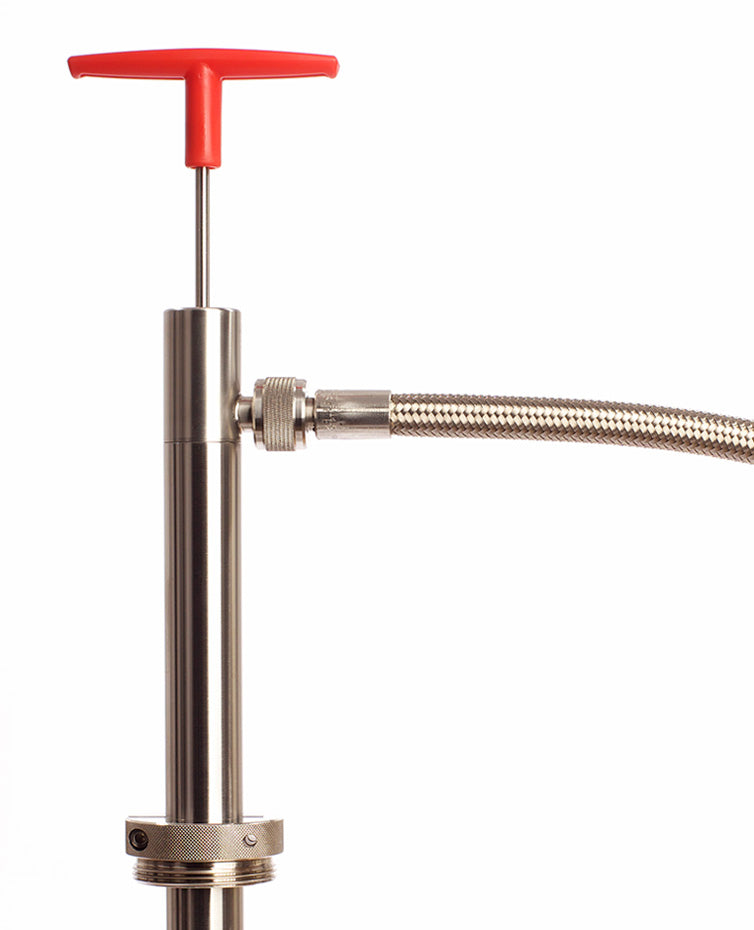

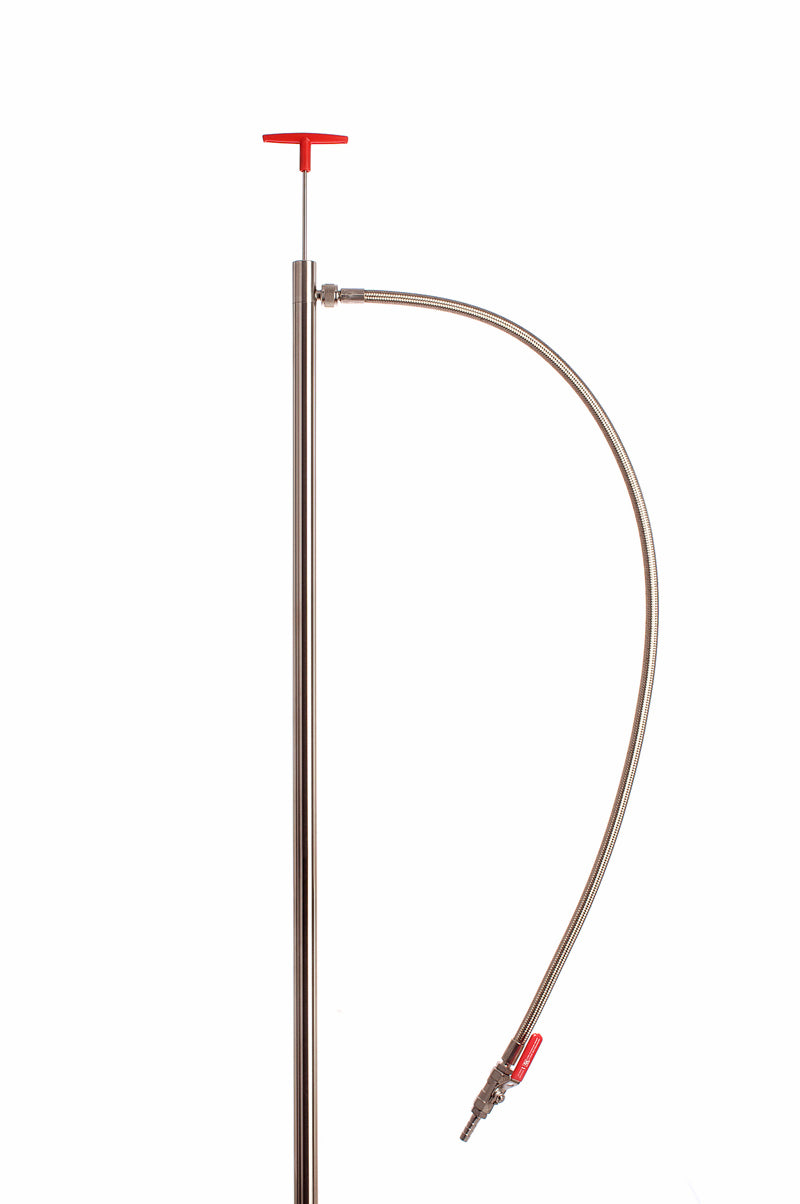

Drum pump for flammable liquids, immersion depth 910mm, EX Zone 0

Drum pump for flammable liquids, hose outlet, immersion depth 910mm, EX protection zone 0.

For the stainless steel hand drum pump, you will also need an R2 inch drum adapter. The adapter shown is for illustrative purposes only.

Numerous adapters are available, from gas-tight metal versions to PVC. Please call us to discuss your application and we will recommend the appropriate drum adapter.

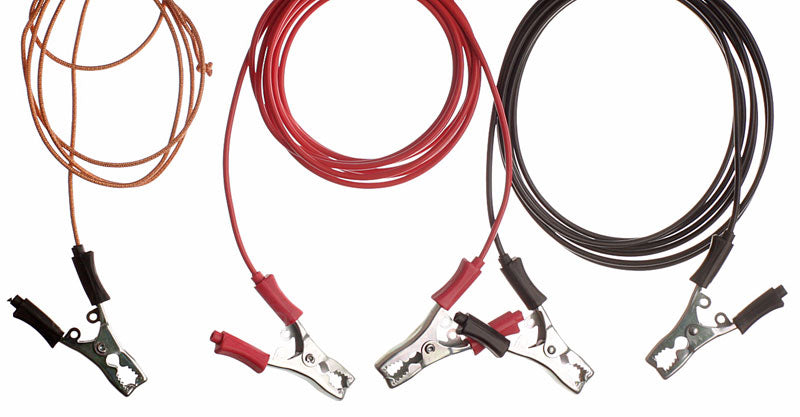

In conjunction with the anti-static set, which is available as an accessory, the pump meets the requirements for filling flammable liquids.

DEKRA has tested this hand pump and approved it for EX protection zones 0 and 1. Explosion group II A.

The PTFE seals inside the discharge hose ensure durable and maintenance-free use. The hose is 1.2 m long, contributing to a fast and safe workflow.

Only food-safe materials are used in the pump.

Not suitable for acetone. For this application, please use our solvent pump.

Technical details:

DEKRA tested EX protection zone 0 + 1 Explosion group II A

Immersion tube diameter 32 mm

Immersion depth 910 mm Total length 1030 mm

Stroke 560 ml

Hose outlet made of PTFE inside and VA outside 1.2 m

Electrically conductive

Shut-off valve VA NW 8 mm

Spout diameter 12.8 mm
