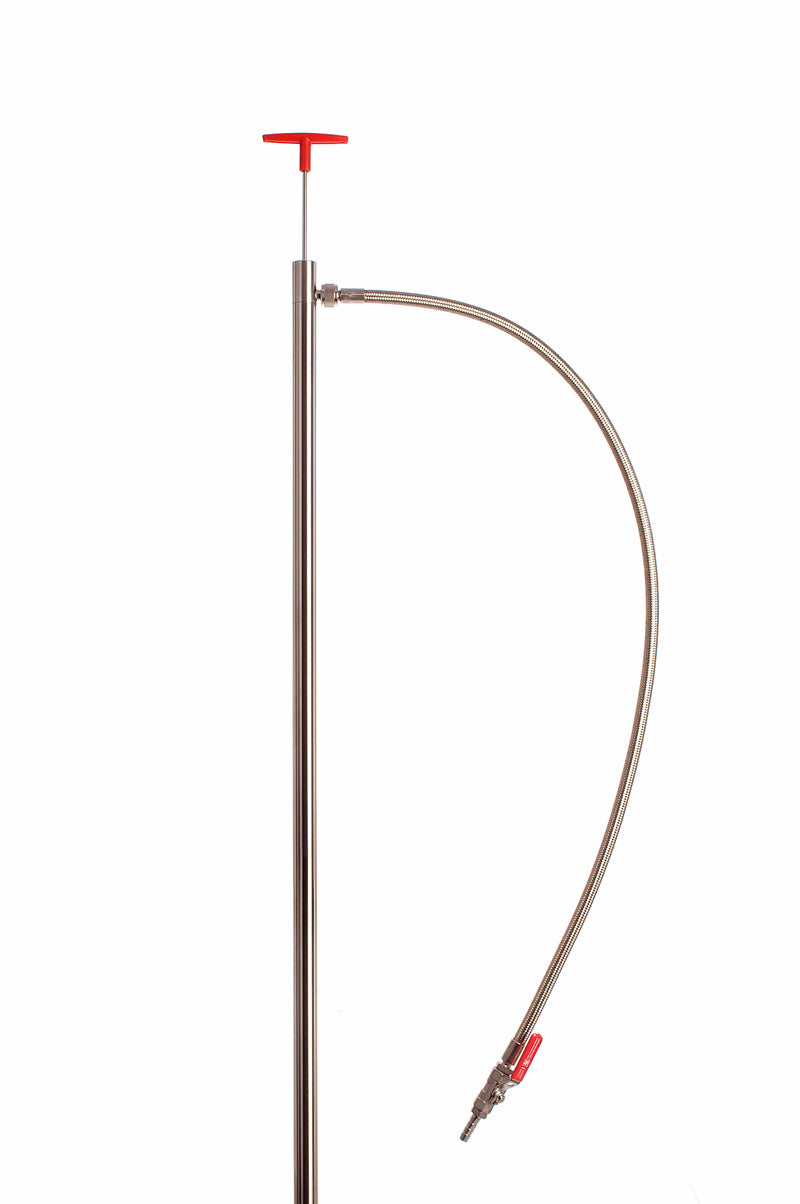

Drum pump for flammable liquids, immersion depth 360mm, EX protection zone 0

Drum pump for flammable liquids, hose spout, immersion depth 360mm, EX protection zone 0.

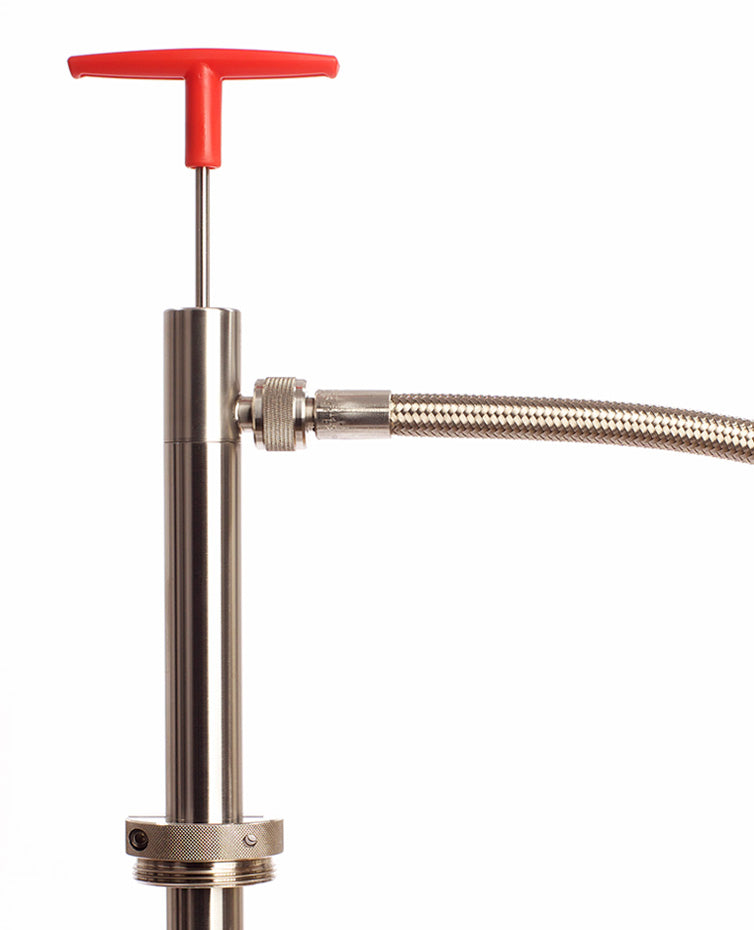

You still need a barrel adapter R2 inch for the stainless steel hand drum pump. The adapter shown is only an example.

Numerous adapters are available, from gas-tight metal versions to PVC. Call us to discuss your application, and we will recommend the right drum adapter for you.

In conjunction with the anti-static set, which is available as an accessory, the pump meets the requirements for filling flammable liquids.

DEKRA has tested this hand pump and approved it for EX protection zones 0 and 1. Explosion group II A.

The PTFE seals inside the outlet hose ensure long-lasting and maintenance-free use. The hose is 1.2 m long, contributing to a fast and safe workflow.

Only food-safe materials are used in the pump.

Not suitable for acetone. For this application, please use our solvent pump.

Technical details:

DEKRA tested EX protection zone 0 + 1 Explosion group II A

Immersion tube diameter 32 mm

Immersion depth 360 mm Total length 470 mm

Stroke 220 ml

Hose spout made of PTFE inside and VA outside 1.2 m

Electrically conductive

Shut-off valve VA NW 8 mm

Spout diameter 12.8 mm
