Oil filter unit oil cleaning, 10 my, 230 Volt, Set 25
€874,80
Taxes included.
Shipping calculated at checkout.
- SKU: HÖl-Reiniger-Set-25
People are currently viewing this
Couldn't load pickup availability
Description

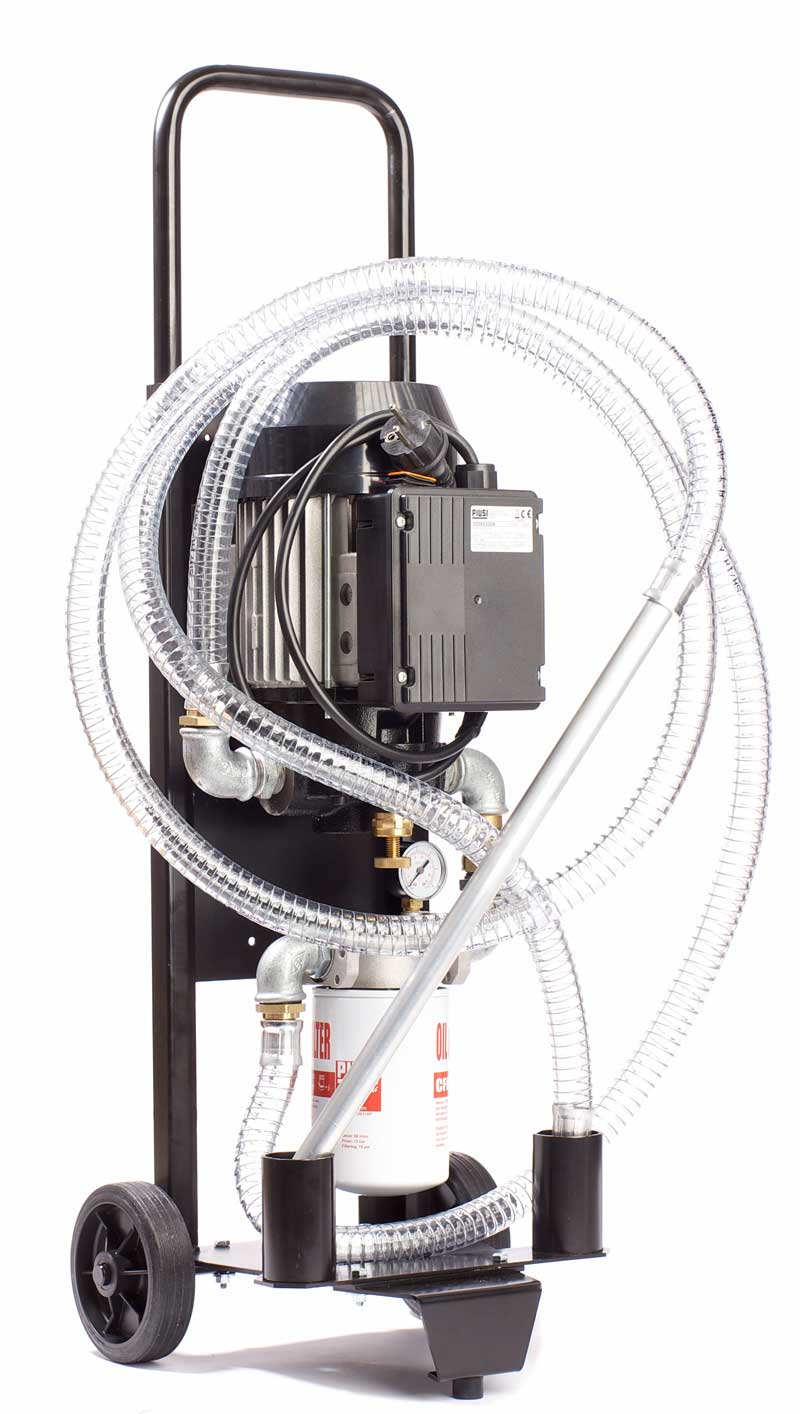

Oil Filter Unit Oil Cleaning, 10 my, 230 Volt, Set
This unit can easily extend the change intervals of machines using, for example, hydraulic oil.
The unit extracts the used hydraulic oil from the machine's tank using a lance.
The oil is then drawn through a special filter and cleaned. This filter filters the hydraulic oil down to 10 microns.
It removes particles contained in the oil such as copper, iron, sand, and dust particles.
A manometer mounted on the filter head indicates an impending filter change to the user.
The positive displacement pump with bypass then conveys the cleaned oil through a clear hose into a prepared drum.
The entire unit is installed ready for use on a hand truck.
Technical Data:
Flow rate approx. 25 to 30 l/min, depending on filter condition
Filter capacity 10 μ
Oils, hydraulic oils up to max. 500 cst
230 Volt pump
Dimensions 400 x 660 x 310
Weight 21 kg
This unit can easily extend the change intervals of machines using, for example, hydraulic oil.
The unit extracts the used hydraulic oil from the machine's tank using a lance.
The oil is then drawn through a special filter and cleaned. This filter filters the hydraulic oil down to 10 microns.
It removes particles contained in the oil such as copper, iron, sand, and dust particles.
A manometer mounted on the filter head indicates an impending filter change to the user.
The positive displacement pump with bypass then conveys the cleaned oil through a clear hose into a prepared drum.
The entire unit is installed ready for use on a hand truck.
Technical Data:
Flow rate approx. 25 to 30 l/min, depending on filter condition
Filter capacity 10 μ
Oils, hydraulic oils up to max. 500 cst
230 Volt pump
Dimensions 400 x 660 x 310
Weight 21 kg
Lieferung der Ware im Inland (Deutschland) innerhalb von 3 - 5 Werktagen
