Crank pump, barrel pump, oil, vegetable oil

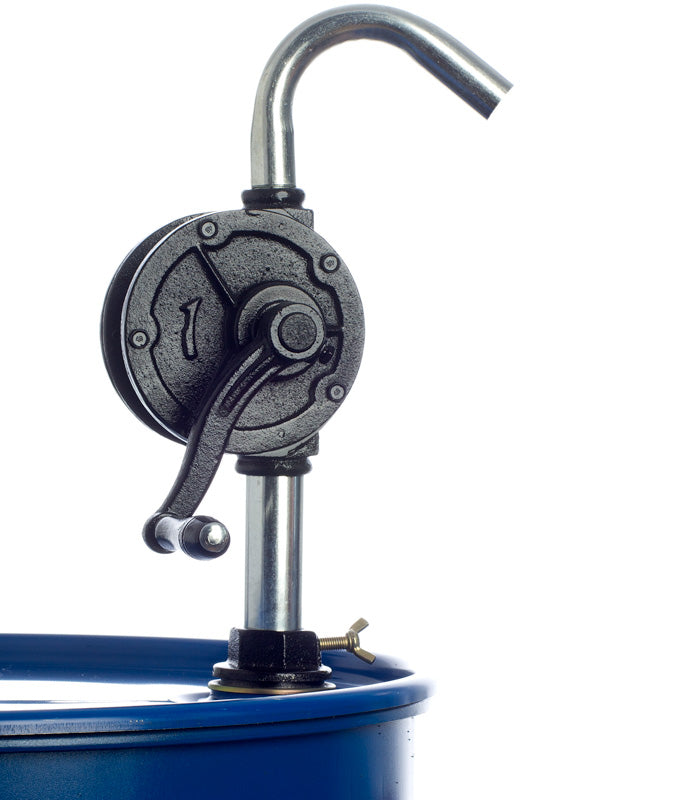

Crank pump for operation on a 200 l drum. For transferring oil and vegetable oil

With this crank pump you can transfer oil and vegetable oil.

Not suitable for use with food or cosmetics.

Designed for oils in technical applications only.

The suction pipe is suitable for 200 barrels.

The included barrel adapter fits into the openings of 200 l metal barrels.

Liter capacity: 250 ml per revolution approx. 30 l/min

max. suction height 1.5 m

max. delivery head 5 m

Media:

Diesel, heating oil, EL/L

Engine oil

Gear oil up to SAE 140

hydraulic oil

thin mineral oils up to SAE 50

Weight 5.5 kg

Scope of delivery:

2" barrel adapter, barrel thread: DN 50 (2") M 64 x 4

Suction pipe three-part with 2 sleeves
