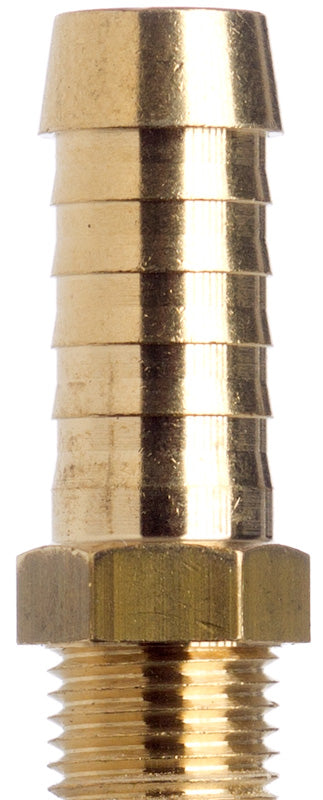

Hose nozzle 10 mm M 10 x 1 thread, metric, brass

Hose nozzle 10 mm M 10x1 thread, metric, brass

10 mm hose nozzle with metric M 10x1 thread

The grommet does not have a collar for a sealing ring.

We recommend using our hydraulic adhesive to install the grommets.

Metric thread 10x1 with 10 mm outlet

Outer diameter of inner serration 9 mm, outer serration 9.49 mm, top end 10.46 mm

usable hose outlet 22 mm

Inner diameter 5.91 mm

Wrench size 11 mm

Thread length 6.8 mm

Weight 13 g
