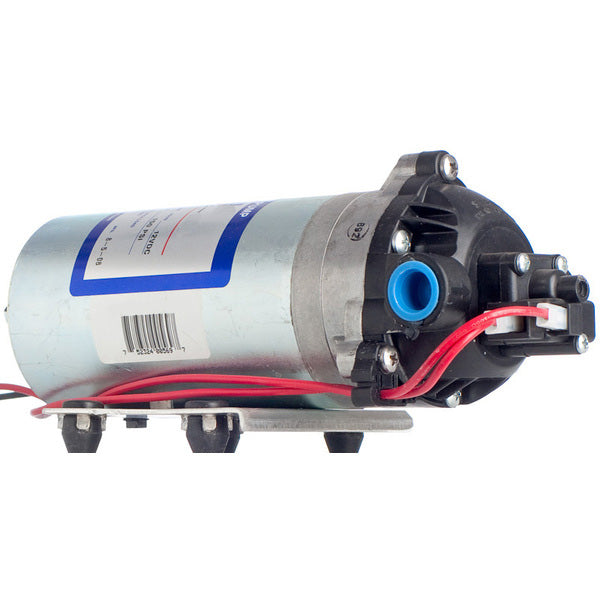

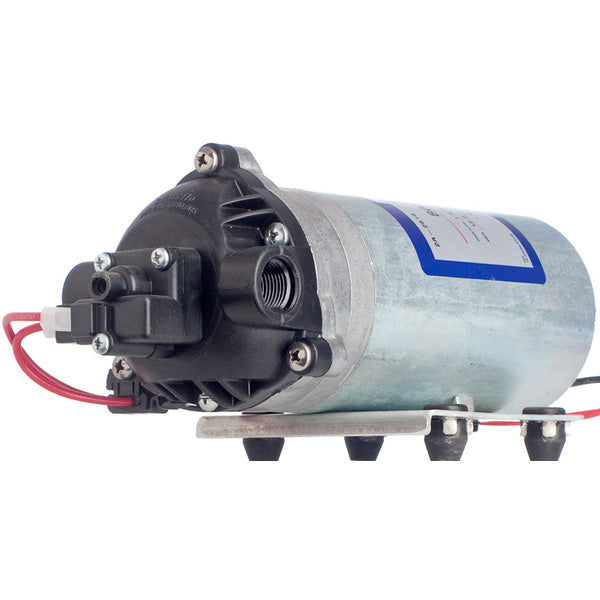

Pressure Diaphragm Pump 12 Volt, 6.8 l/min, max 4.1 bar, continuous operation

Pressure diaphragm pump 12 Volt, 6.8 l/min, max 4.1 bar, continuous operation

This diaphragm pump with pressure switch is used in industrial and agricultural technology.

Mainly, this diaphragm pump is used for pumping water.

However, the pump head also pumps all low-viscosity media that are compatible with the materials used in the pump.

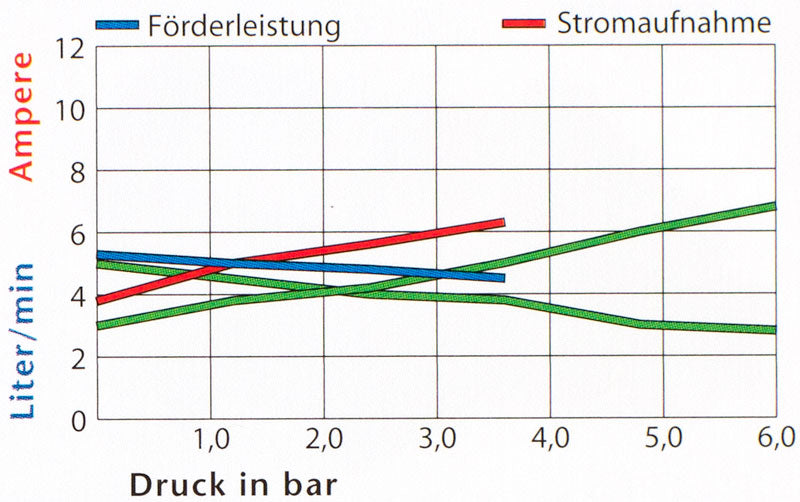

For the pressure level, refer to the lower green line in the diagram shown.

Technical data:

max 6.8 l/min

Double-sided internal thread 3/8 NPT

Suction height dry max 3.1 m

Shut-off pressure 4.1 bar

max. motor temperature 65 Cº

max. media temperature 77 Cº

12 Volt motor, max. 6.2 A current consumption, average 4 A

Material pump head outside PP, inside VIT and SAN

Continuous operation

Dimensions 215x102x115

Weight 2.2 kg
