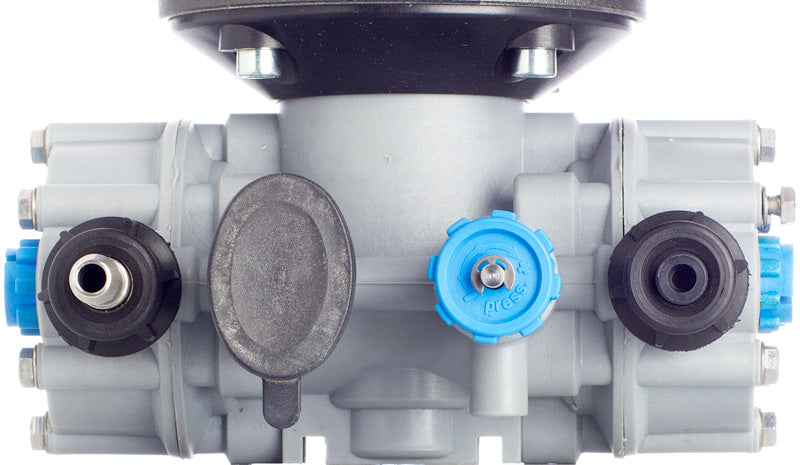

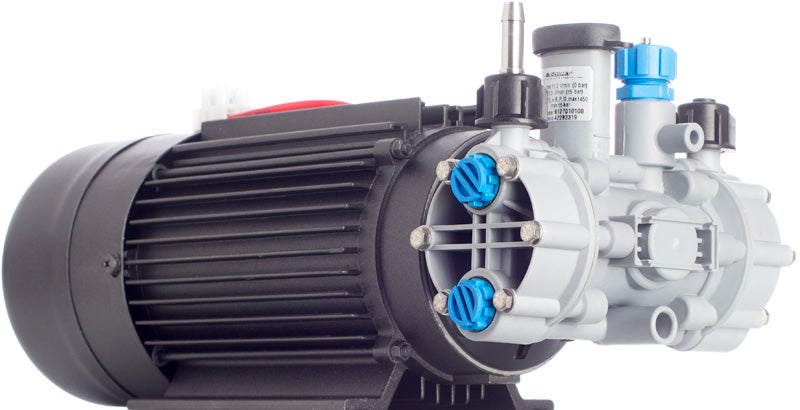

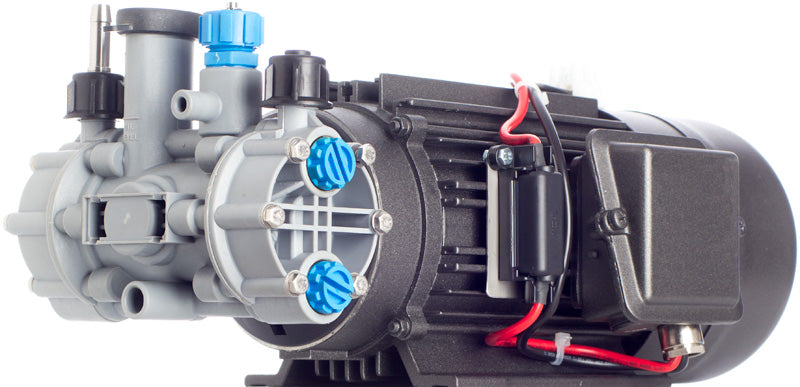

Pressure diaphragm pump 24 volt, max. 11.9 l/min, max. 15 bar, continuous operation, acid-resistant
€1.206,40
Taxes included.
Shipping calculated at checkout.
- SKU: DMP-24-11,9-15-Säure
People are currently viewing this
Couldn't load pickup availability
Description
Diaphragm pump 24 Volt, max. 11.9 l/min, max. 15 bar, continuous operation
This twin-piston diaphragm pump is used for spraying applications in gardens, greenhouses, green spaces, and small to medium-sized cultivation areas.
This twin-piston diaphragm pump is also suitable for continuous industrial use.
This corrosion-resistant version is specially equipped for acids with a propylene housing and Viton membranes.
The pumps have a built-in stepless pressure regulator with return.
The return can be used as an agitator.
The pump housing is made of PP, and the mechanical parts run in an oil bath.
The pump has good dry-running properties and impresses with its particularly smooth and pulsation-free delivery of liquids in the medium pressure range.
The pump head conveys all low-viscosity media that are compatible with the materials used in the pump.
Examples include cleaning agents, liquid fertilizers, plant protection products, and water-soluble paints.
Technical data:
max 11.9 l/min
24 Volt motor for continuous operation, nominal current max 17 A
Pump head material outside PP, inside Viton
Motor 290x180x150 mm
This twin-piston diaphragm pump is used for spraying applications in gardens, greenhouses, green spaces, and small to medium-sized cultivation areas.
This twin-piston diaphragm pump is also suitable for continuous industrial use.
This corrosion-resistant version is specially equipped for acids with a propylene housing and Viton membranes.
The pumps have a built-in stepless pressure regulator with return.
The return can be used as an agitator.
The pump housing is made of PP, and the mechanical parts run in an oil bath.
The pump has good dry-running properties and impresses with its particularly smooth and pulsation-free delivery of liquids in the medium pressure range.
The pump head conveys all low-viscosity media that are compatible with the materials used in the pump.
Examples include cleaning agents, liquid fertilizers, plant protection products, and water-soluble paints.
Technical data:
max 11.9 l/min
24 Volt motor for continuous operation, nominal current max 17 A
Pump head material outside PP, inside Viton
Motor 290x180x150 mm
