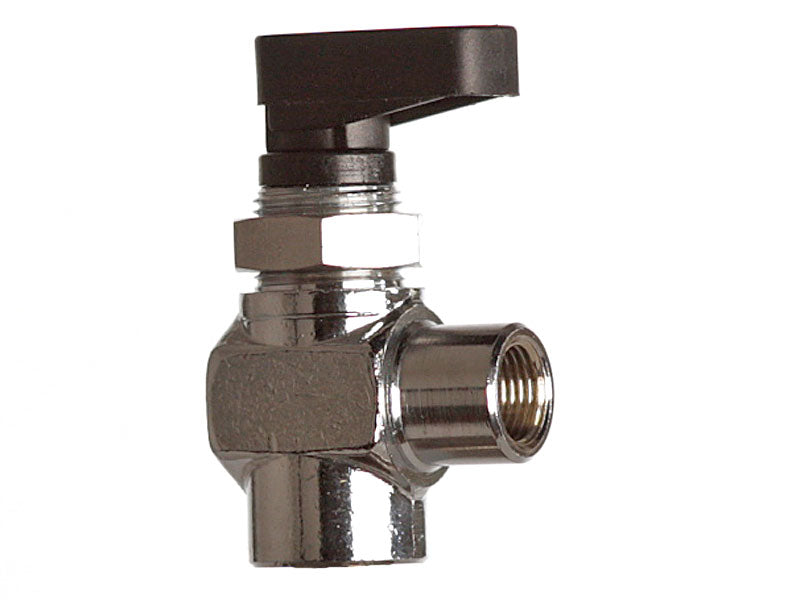

Angle ball valve, miniature, 1/8 IG, T-handle, mounting option, panel mounting

Angle ball valve, miniature T-handle 1/8 IG, mounting option, panel mounting

Panel installation: Ø 14.5mm sheet metal thickness max. 4.5 mm

Execution of the holes in L shape

Width across the L 28.5 mm

Height with handle 49 mm

Wrench size 17 mm

chrome-plated brass

Ball brass hard chrome-plated

Seal Teflon/NBR

max 20 bar operating pressure

Operating temperature -15 ºC to max. +80 ºC

Water (no steam), neutral, gaseous and non-aggressive liquid media, mineral oils, compressed air, vacuum (max. -0.99 bar)

Weight 70 g
