AdBlue pump 230 volt, 35 l/min, 1.5 bar, 200 l barrel set, automatic nozzle

AdBlue Pump 230 Volt, 35 l/min, 1.5 bar, 200 l Barrel Set

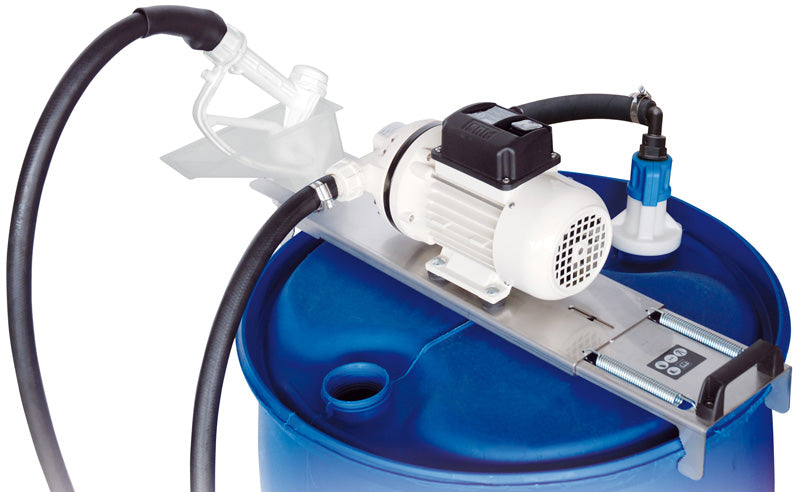

Complete set, as shown, with manual nozzle.

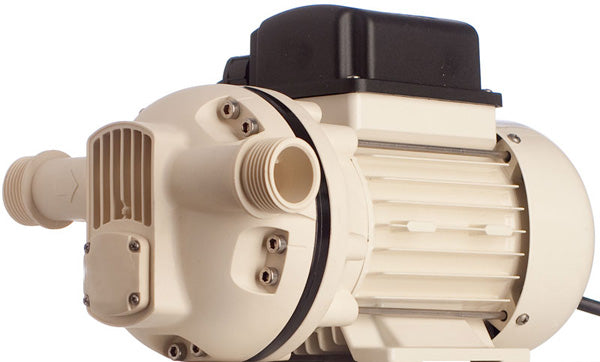

This diaphragm pump is used for refueling Euro 5 vehicles with the urea solution AdBlue.

When the AdBlue nozzle is closed, the pump's integrated bypass works, allowing for trouble-free refueling.

The materials used for the pump parts that come into contact with AdBlue are specially designed for the urea solution.

The AdBlue pump must be protected from frost, as AdBlue will crystallize and damage the pump.

If the pump is not used for more than 15 consecutive days, the piping system and pump must be flushed with water.

- with holder for 200 l barrel

- discharge hose 6 meters

- suction hose with SEC quick coupling and base plate for mounting on a barrel

- suction pipe for urea with SEC/CDS lid

Technical data:

max 35 l/min

max 1.5 bar

suction height max 2 m

hose nozzles on both sides with 3/4 inch outlet

EPDM diaphragm

Motor 230 Volt 50 HZ max 1.5 A

ON OFF switch

2 m cable

Intermittent operation of max. 20 min continuous operation

Dimensions 350x180x280

Weight 7 kg
