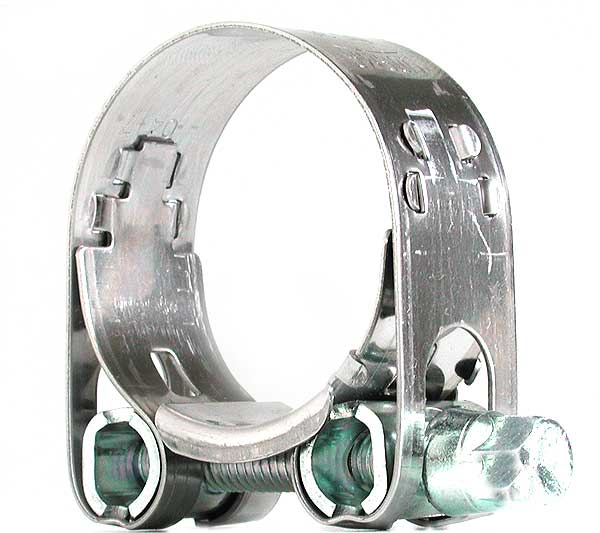

Hinged bolt clamp round-pulling 31-34 mm, stainless steel

Articulated bolt clamp round-pulling 31-34 mm, stainless steel, Normaclamp GBS

This clamp is suitable for our clear suction and pressure hoses with 1 inch inner diameter and 33 mm outer diameter.

The NORMACLAMP GBS is a hinged bolt clamp according to DIN 3017.

This clamp is used to secure hoses subject to heavy loads due to high operating pressures. Primarily heavy-duty suction and pressure hoses with smooth surfaces.

The loops at the ends of the straps are attached with mechanical fasteners. These mechanical fasteners on the strap allow for significantly higher tensile forces.

Up to 70% higher clamping forces compared to other hinged bolt clamps on the market set new standards.

Clamping range 31-34 mm

Screw head 8 mm

Strap made of chrome steel/VA, 18 mm wide

Locking parts carbon steel, galvanized/chromated
