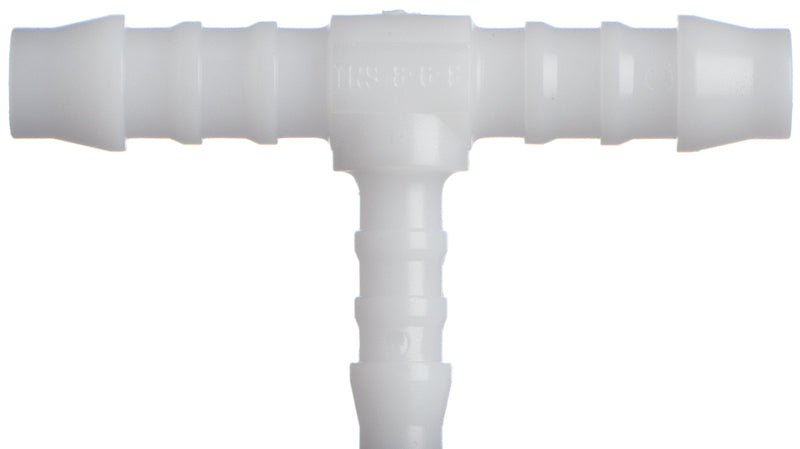

Hose connector T piece reduced 10 - 6 - 10 mm, plastic, POM, water, diesel, air, petrol

Hose connector T piece reduced AD 10 - 6 - 10 made of plastic for connecting hoses with ID 10 - 6 - 10 mm.

Temperature range -0°C to + 80°C

Please only use these hose connectors for the specified temperature range.

If you require a wider temperature range, use our metal hose connectors.

Total length across the horizontal side 62.3 mm, vertical side 34.2 mm

usable hose nozzle large diameter 24.6 mm, small diameter 20 mm

Outer diameter 10 mm from 9.9 - 10.9 - 11.9 mm (grooving inside - middle - outside)

Outer diameter 6 mm from 6.1 - 6.8 - 7.5 mm (grooving inside - middle - outside)

Inner diameter large diameter 7.6 mm

inner diameter small diameter 5 mm

Weight 5 g
