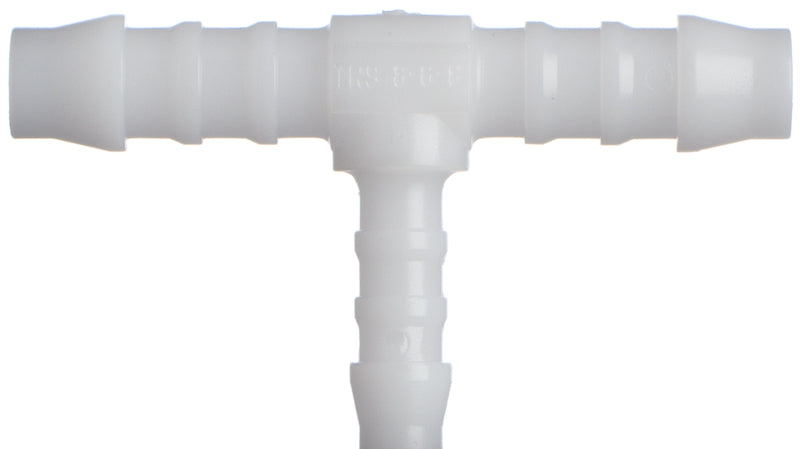

Hose connector T piece reduced 12 - 10 - 12 mm, plastic, POM, water, diesel, air, petrol

Hose connector T piece reduced AD 12 - 10 - 12 made of plastic for connecting hoses with ID 12 - 10 - 12 mm.

Temperature range -0°C to + 80°C

Please only use these hose connectors for the specified temperature range.

If you require a wider temperature range, use our metal hose connectors.

Total length across the horizontal side 68.6 mm, vertical side 39.1 mm

usable hose nozzle large diameter 27.2 mm, small diameter 24 mm

Outer diameter 12 mm from 11.9 - 12.9 - 13.9 mm (grooving inside - middle - outside)

Outer diameter 10 mm from 9.9 - 10.9 - 11.9 mm (grooving inside - middle - outside)

Inner diameter large diameter 9.7 mm

inner diameter small diameter 7.7 mm

Weight 10 g
