Diesel Dispensing Hose, 1 inch ID, 1 inch Female Thread, 1 inch Male Thread, 4 m

Dispenser hose, diesel hose, 1 inch internal diameter hose, 1 inch internal thread, 1 inch external thread, 4 m

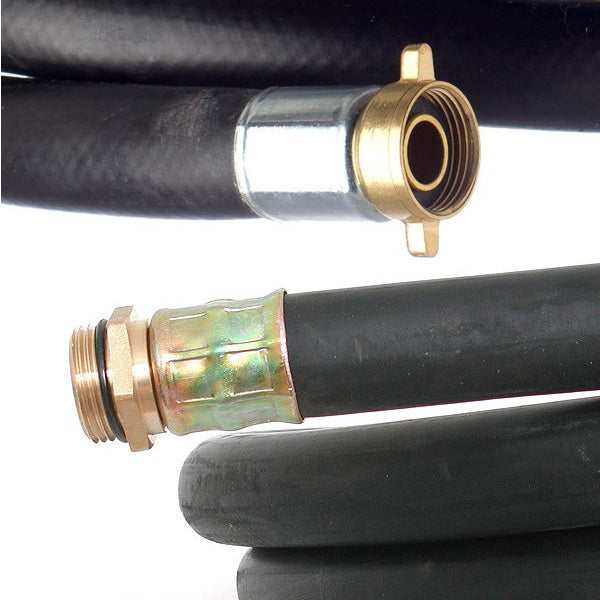

4 meter hose, pre-assembled with pressed 1 inch connections, one side female thread with union nut, other side 1 inch male thread

This pressure hose is suitable for conveying heating oil, petrol, diesel, oils and greases with a maximum aromatic content of 50%.

When used with petrol, the medium must not remain in the hose, but only be passed through. If you need a hose in which the petrol remains even after refueling, please ask us for a tank truck hose for petrol.

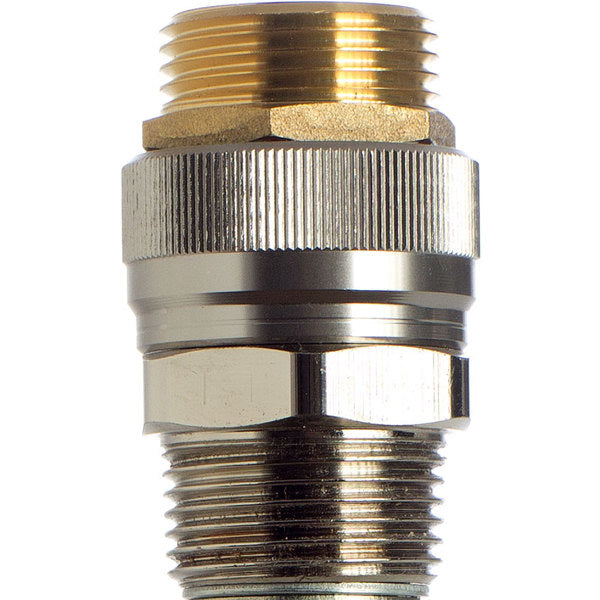

With the help of the optional swivel coupling shown, the handling of the nozzle and fuel hose is considerably simplified.

The annoying untangling of the hose is eliminated. The service life of the fuel hose is extended as a result.

The swivel joint is screwed into the inlet of the nozzle and then connected to the fuel hose.

For long hoses, it is also recommended to mount this swivel fitting at the pump outlet.

For insertion and sealing, we recommend using our thread sealant. The sealant is medium-strength and re-detachable.

The swivel coupling product can be found under the hose accessories button.

Technical details:

4 meter hose length

1 inch union nut - internal thread pressed on one side

1 inch external thread pressed on one side

1 inch ID 25 mm

35 mm OD

max 10 bar operating pressure

Burst pressure 30 bar

Temperature range from -25° C/+80° C for oil up to +100° C

Inner tube NBR black smooth

Cover NBR/EPDM, black smooth, antistatic R<1MOhm/m, abrasion-resistant, oil-, fuel- and weather-resistant

Reinforcement spiralized synthetic textile threads

Bending radius 200 mm
