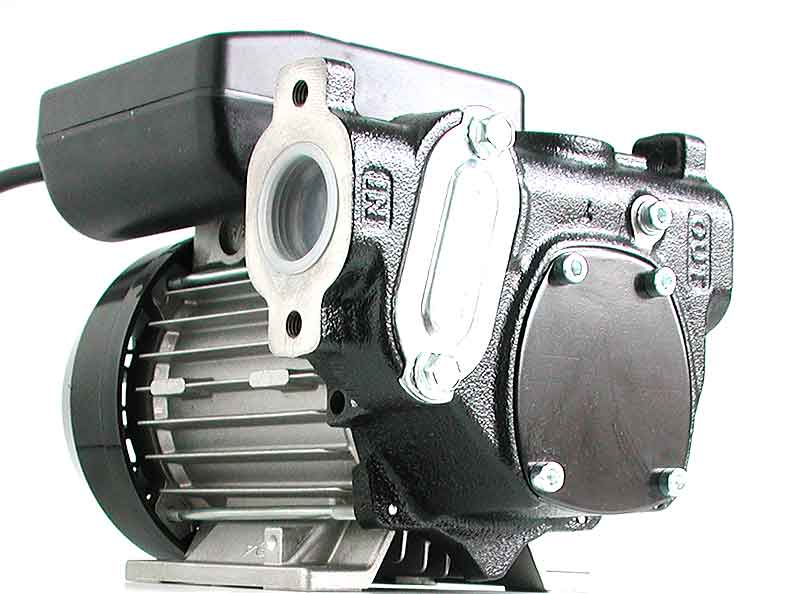

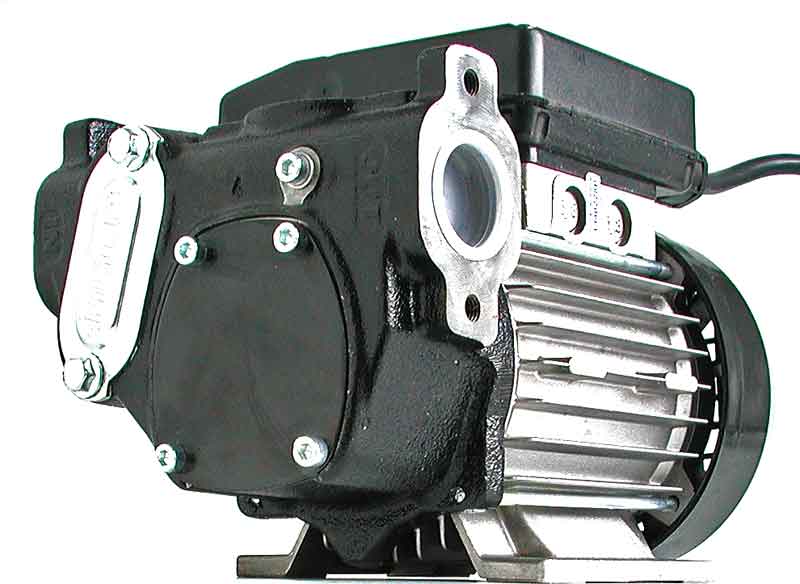

Diesel transfer pump, 230 volt, 56 l/min, 1.5 bar, bypass, suitable for use with a nozzle

Diesel transfer pump, 230 Volt, 56 l/min, 1.5 bar, bypass, suitable for operation with nozzle

Electric positive displacement pump with vanes in 230 Volt version.

The pump is suitable, for example, for transferring diesel into various tanks.

The built-in bypass valve allows use as a dispensing pump and ensures operational safety even with the outlet closed.

A built-in 100 µm filter is maintenance-friendly and integrated into the front of the pump.

To prevent the pump from running dry and to ensure quick filling, it is recommended to install a non-return valve with a suction strainer.

We would also be happy to put together a complete set with suction and discharge hoses according to your specifications.

Technical data:

Flow rate max 56 l/min

Speed 2800 U/min

max 1.5 bar

self-priming, max. 3 m

Threaded nozzles 1 inch internal thread

Approved medium Diesel

Motor 0.370 kw

AC version 230 Volt rated voltage

Suitable for continuous operation

Protection class IP 55

Weight 7.4 kg

Dimensions:

195 x 355 x 270 mm
