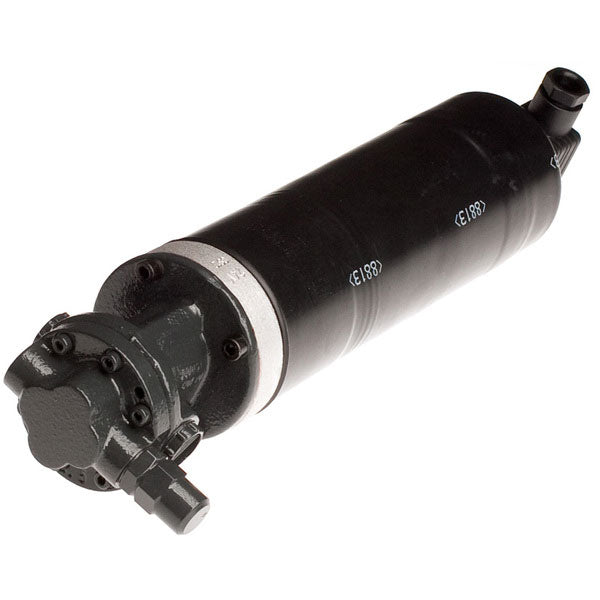

Gear pumps 12 Volt, 0.3-2 bar, 2.5 l/min, bypass

Gear pumps 12 Volt, 0.3-2 bar, 2.5 l/min, bypass

This pump is suitable for continuous operation with vegetable oil, for example as a pre-supply pump in trucks/tractors/CHP units. Particularly suitable as a pump for Common Rail engines.

The gear pump has a service life of around 7500 operating hours, depending on the pressure, duty cycle, and medium.

A pre-filter is mandatory to comply with the warranty. These filters can be found under the "Filters" section. For example, the filter shown, which can be operated by means of banjo bolts. Instead of banjo bolts and ring eyelets, straight fittings with 14x1.5 thread can also be used.

Technical data:

Flow rate 2.5 l/min

Continuously adjustable operating pressure by means of a built-in overflow valve 0.3-2 bar

Self-priming up to 3 m height

Speed 1700 rpm

Threaded nozzles 1/4 internal thread with 10/12 mm are included

Approved media: vegetable oil, diesel, and mineral oils

Operating temperature up to 80 ° C

max input pressure +/- 0.5 bar

DC version 12 Volt nominal voltage

Nominal current 4.9 A and starting current 20 A

Fuse with 15 Amps

Protection class IP 65

Radio interference suppressed

The pump motor has an aluminum housing completely encased in a heat shrink tubing.

Mounting is done using two rubberized stainless steel pipe clamps with M 10 thread. These are available as accessories.

Dimensions:

Total length 32 cm

Diameter 7 cm

Weight 3.3 kg
