Gear pump reversible, 12/24 Volts, max 15 l/min, Diesel, Display

Gear pump with reversing function, 12/24 Volt, max 15 l/min, Diesel, Display

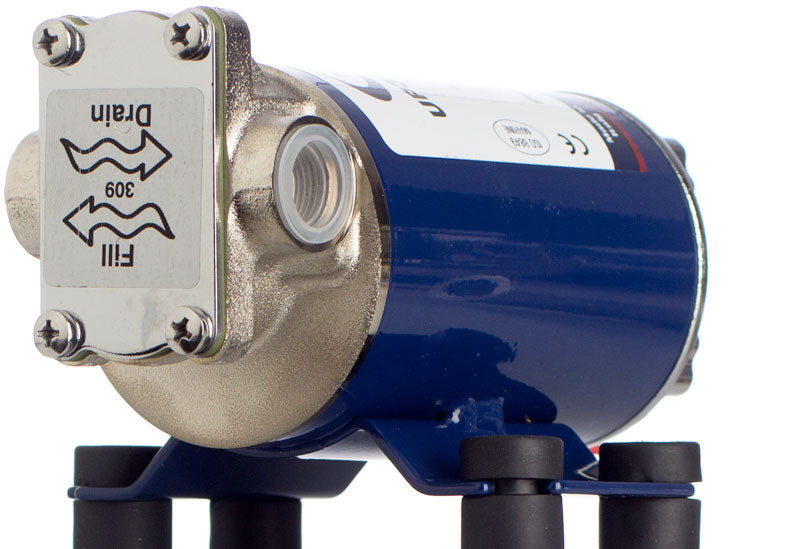

With this self-priming gear pump, it is possible to suck diesel from one tank and transfer it to another.

This can be done automatically using the display. The display also allows for reversing the direction of rotation.

An exemplary application is the transfer of diesel to various auxiliary tanks in off-road vehicles that do not have their own filler neck.

The main tank with a filler neck is filled with diesel as usual, and the other extra tanks are then fueled from it using the pump.

Thanks to the reversing function, it is, of course, also possible to refuel the main tank from the extra tanks.

Another area of application is in boat building. Here, various diesel tanks can be internally pumped for tank leveling.

The boat can thus be kept in balance.

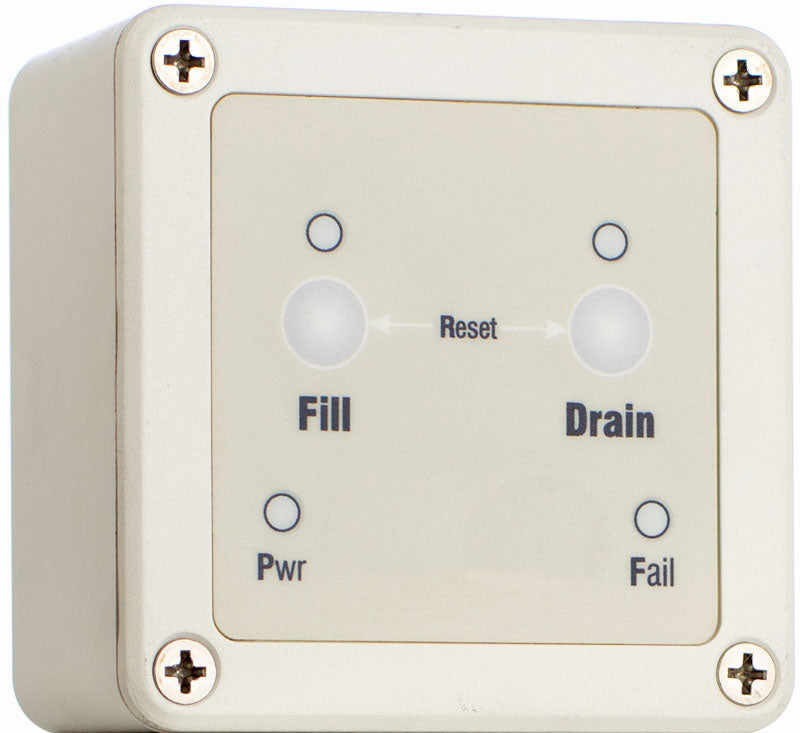

The electronic display has several intelligent controls:

It detects if a tank has been emptied and then automatically switches off the pump after 60 seconds.

The pump is automatically switched off via the display after 60 seconds to prevent damage to the pump if it pumps against resistance.

The pump always runs for 30 seconds and is then restarted via the display.

Technical data:

Medium: Diesel

Gears made of bronze

Max. pressure 2 bar

Flow rate max. 15 l/min

Self-priming up to 1.5 m height

Threaded nozzles 3/8 internal thread, 2 hose nozzles with 13 mm OD are included in the scope of delivery

Version: DC 12 or 24 Volt nominal voltage

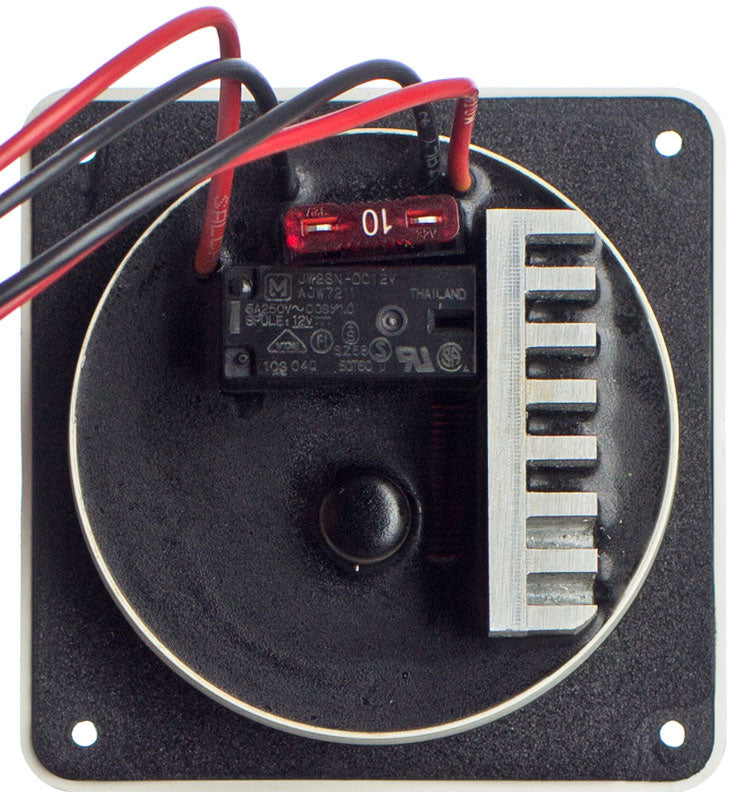

Fuse 10 A

Current consumption max. 4 Amperes at 12 Volt operation, 2 A at 24 Volt operation

The pump has IP 67

Weight 1.8 kg
