Windshield Washer Pump, Gear Pump, 12 Volt, max. 1.84 l/min, max. 2.2 bar, self-priming

Washer pump, wiper fluid pump, gear pump 12 Volt, max. 1.84 l/min, max. 2.2 bar, self-priming

This self-priming gear pump is suitable for pumping washer fluid in the windshield washer system.

The washer fluid pump delivers approx. 1.84 l/min, which is twice as much as a normal windshield washer pump. Pressure at 1 l/min approx. 2.2 bar.

The gear pump is only suitable for intermittent operation, max. 3 min continuous power.

This wiper fluid pump is intended as a universal replacement and is to be mounted in the engine compartment.

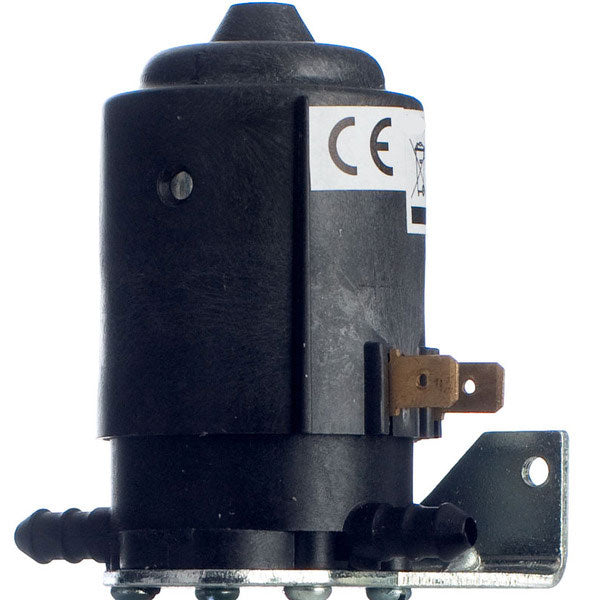

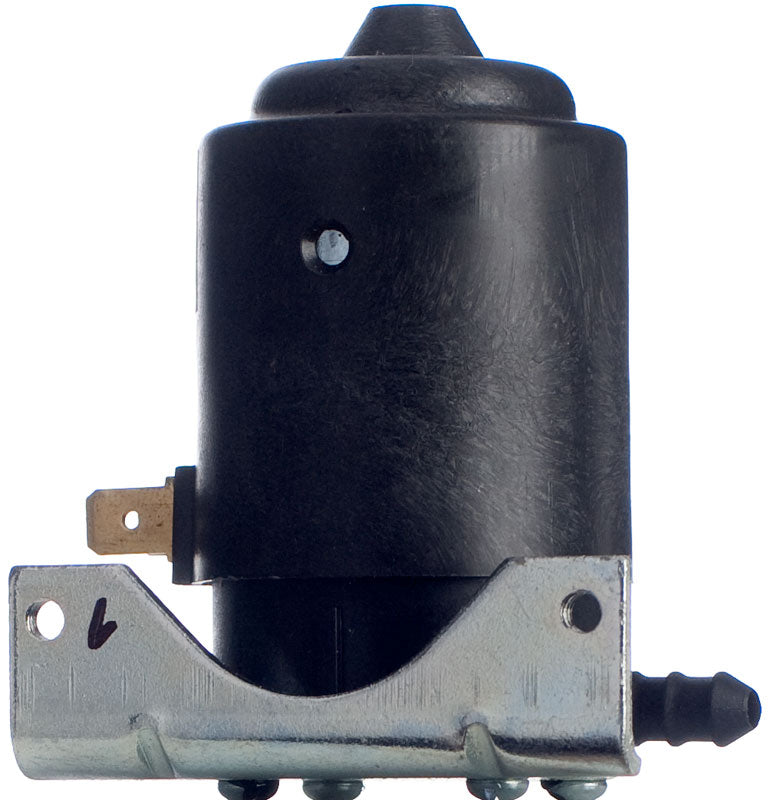

You achieve the best effect if you mount the pump vertically, as shown in the picture.

The windshield washer pump is particularly suitable for operation with a large tank, for example in off-road vehicles for off-road use.

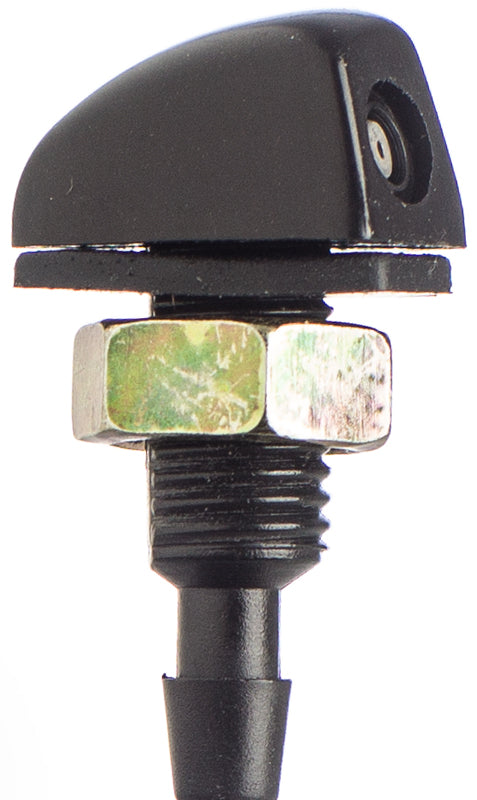

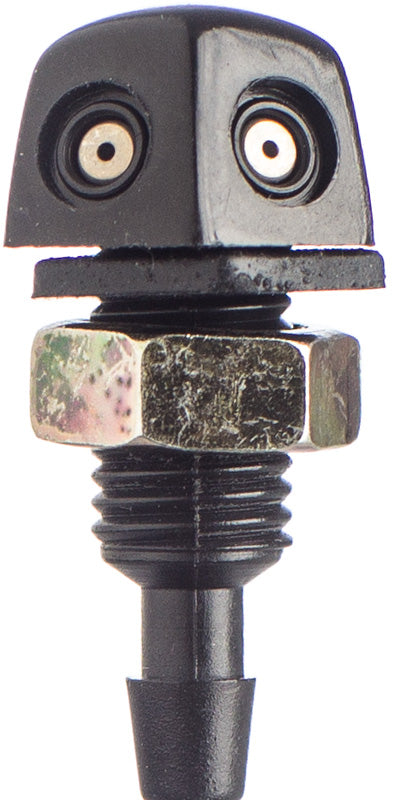

You can find the matching wiper fluid nozzles under the "Accessories" category.

A suitable hose for wiper fluid with 6 mm inner diameter can be found under the "Hoses" button.

For connecting the hose by the meter, we also carry suitable 6 mm check valves and numerous other plastic hose connectors with 6 mm outer diameter.

If the wiper fluid hose line installed in your vehicle only has a 4 mm inner diameter, we also carry the suitable reduction from 6 to 4 mm.

You can find these and other connector types under the "Plastic Hose Connectors" button.

Technical data:

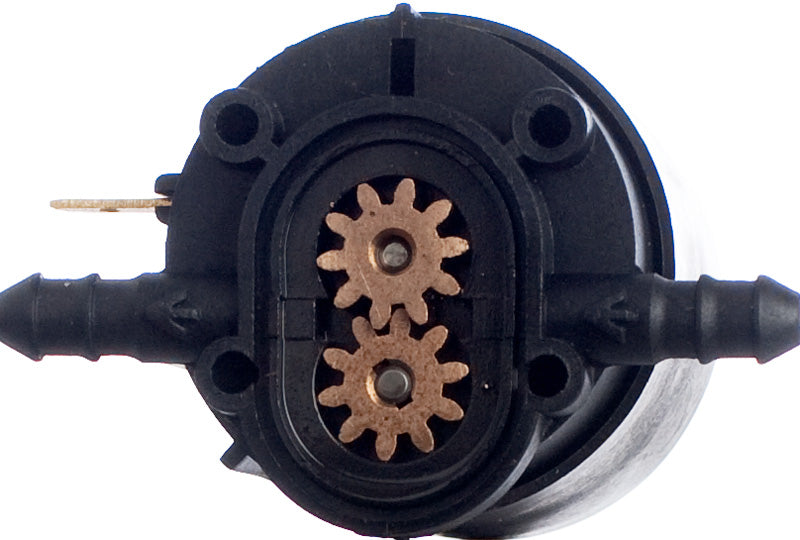

Self-priming gear pump

DC version, 12 Volt nominal voltage

Flow rate max 1.84 l/min

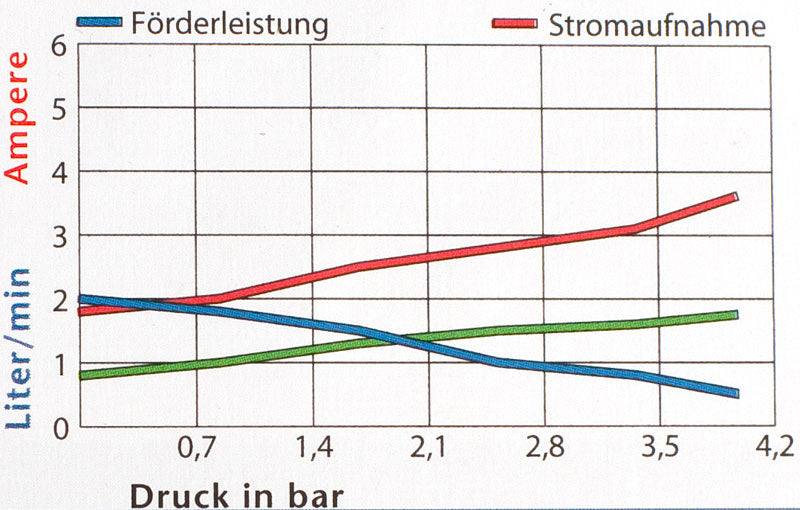

Pressure at 1 l/min approx. 2.2 bar

Approved media: water, windshield washer fluid

Only suitable for intermittent operation, max. 3 min continuous power

Hose connection 6 mm

Length 71 mm

Motor diameter 40 mm

Length measured over the hose connections 63 mm

Height of mounting plate when mounted horizontally 46 mm

Weight 176 g
