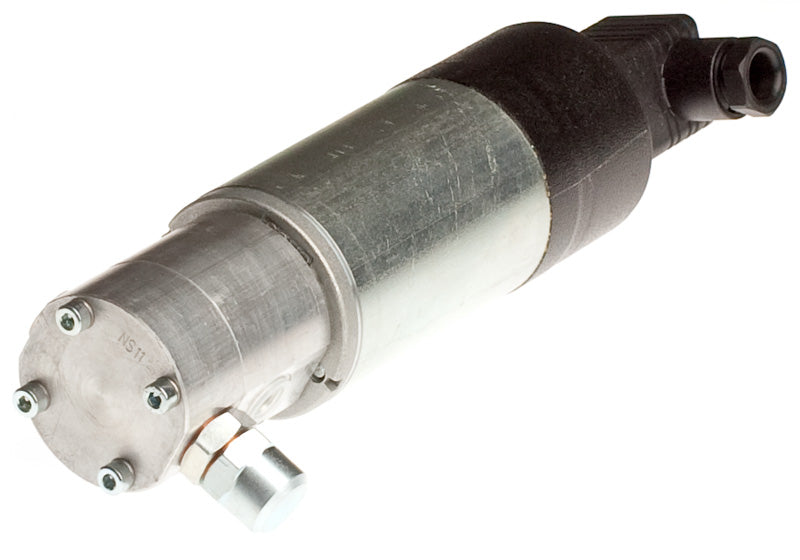

Gear pump 24 Volt, 1-5 bar, 0.8 l/min, bypass, brake fluid

Gear pump 24 Volt, 1-5 bar, 0.8 l/min, bypass, brake fluid

This pump is suitable for continuous use with brake fluid.

The gear pump has a guaranteed service life of 8000 - 10,000 operating hours, depending on the pressure driven.

An additional return outlet of the pump must be connected to the return to the tank. This enables trouble-free operation.

Technical data:

Flow rate 0.8 l/min

Continuously adjustable operating pressure 1-5 bar

Self-priming up to 3 m height

Continuous current 4.6 A and 23.7 A starting current

Thread 1/8 internal thread

Approved media: brake fluid

Operating temperature up to 80 ° C

max inlet pressure +/- 0.5 bar

DC version 24 Volt nominal voltage

Fusing with 15 Amperes

Protection class IP 65

Spark suppressed

Mounting is done by means of two rubber-coated stainless steel pipe clamps with M 8 thread. These can be found in the accessories section.

Dimensions:

Total length with plug: 22 cm

Motor diameter: 5.2 cm

Weight: 1125 g
