Gear pump 24 Volt, max. 7 bar, max. 1.6 l/min, electronically controllable

Gear pump 24 Volt, max. 7 bar, max. 1.6 l/min, electronically controllable

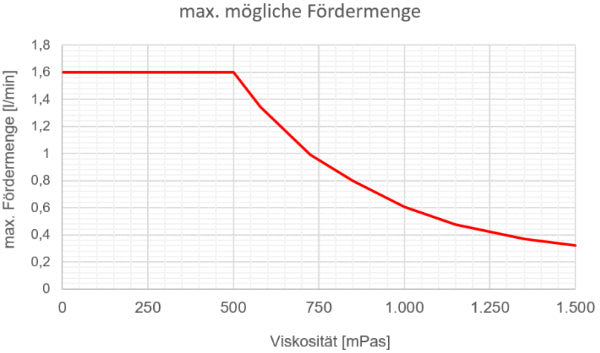

This DC pump is suitable for liquids between 0.8 and 1,200 mPas.

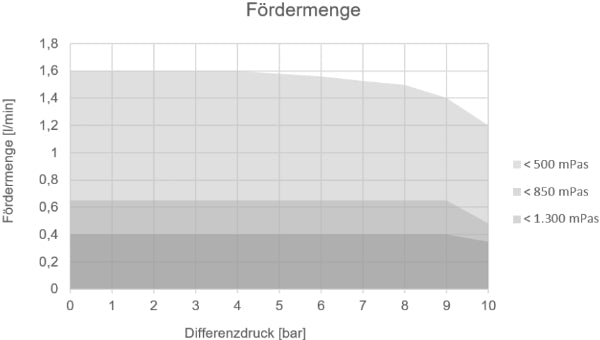

Flow rate:

Displacement: 0.32 cm³/rev

Differential pressure: max. 10 bar, nominal 7 bar

max. inlet pressure: 15 bar

Bursting pressure: >30 bar

max. flow rate: 96 l/h (1.6 l/min)

Suction head (wet) max. 4.0 m

Ambient temperature from -30° to +85° C

Media temperature from -10° to +80° C

The pump's service life is >10,000 h

The pump requires a filtered medium with a filter fineness of min. 20μm, β=200

Materials:

Seals FKM, it is possible to equip the pump with EPDM

Gears and bearings PEEK

Housing and shafts stainless steel 1.4404 (316L)

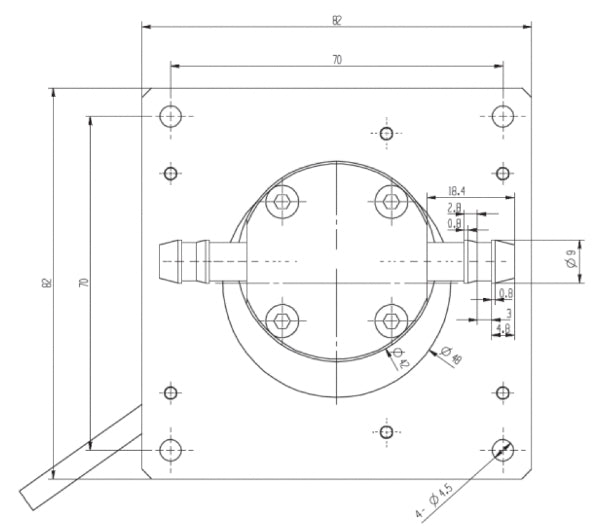

G1/8" internal thread on both sides

Drive:

BLDC motor

Supply voltage 24V DC

Power consumption max. 50 W

Control 2Q regulation

Speed feedback via Hall sensors

Forward and reverse operation possible

Speed range: 600 - 5,500 1/m

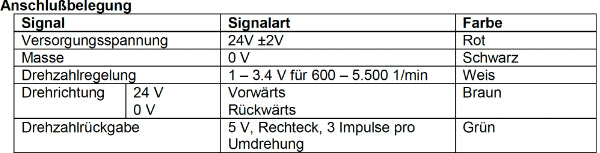

Electrical connection:

Red: +24 VDC

Black: GND

White: 1 - 3.4 VDC control for speed

Brown: +24 VDC forward operation; 0 VDC reverse operation

Green: Speed pulse, 0-5 V square wave

Weight 1.6 kg
