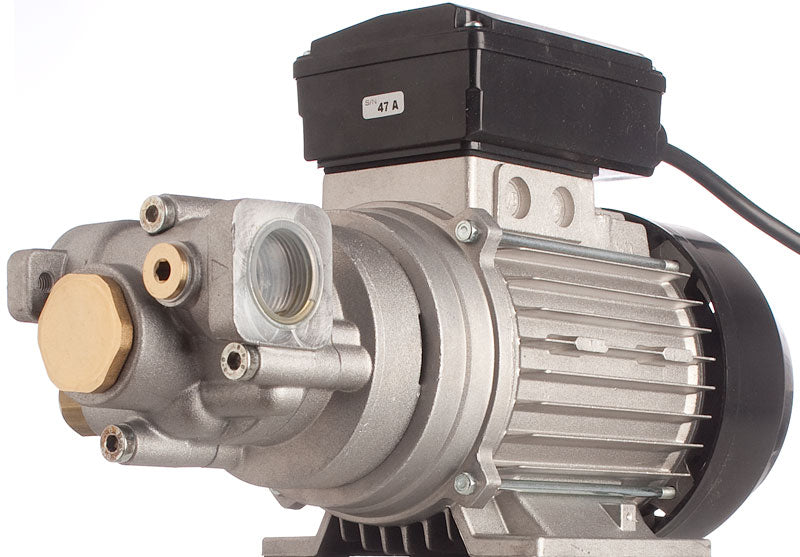

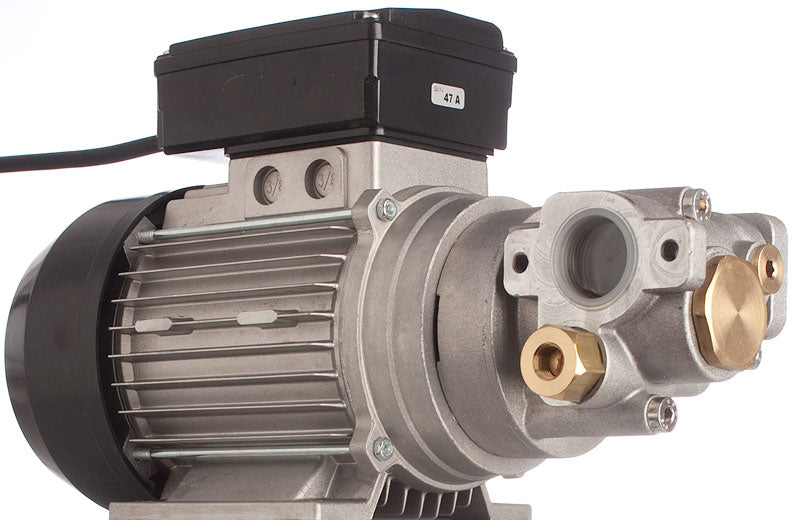

Lubricating oil pump, gear pump 400 Volt, 9 l/min, 10 bar, bypass, oil up to 2000 cSt

Lubrication oil pump, gear pump 400 Volt, 9 l/min, 10 bar, bypass, oil up to 2000 cSt Electric gear pump in 400 Volt version. The pump has a built-in bypass valve, allowing it to operate even with a closed outlet. This gear pump is suitable, for example, for transferring vegetable oil into various tanks. Another application is for filtering used oil or transferring lubricating oils. To attach the optional filter holder to the pump, the illustrated adapter from 1 to 1 inch is required. To prevent the pump from running dry and to ensure quick filling, it is recommended to install a check valve with a suction strainer. We would be happy to put together a complete set with suction and pressure hoses according to your specifications. Technical data: Flow rate max 9 l/min (at 20 degrees Celsius with SAE 20 medium) max 10 bar up to 2000 cSt max. 70 degrees Celsius Self-priming max. 4 m height Threaded nozzles 1 inch internal thread Approved media vegetable oil and other oils Motor 550 Watt Version 400 Volt nominal voltage Protection class IP 55 70 db Dimensions: 350 x 200 x 280 mm Weight 9 kg
