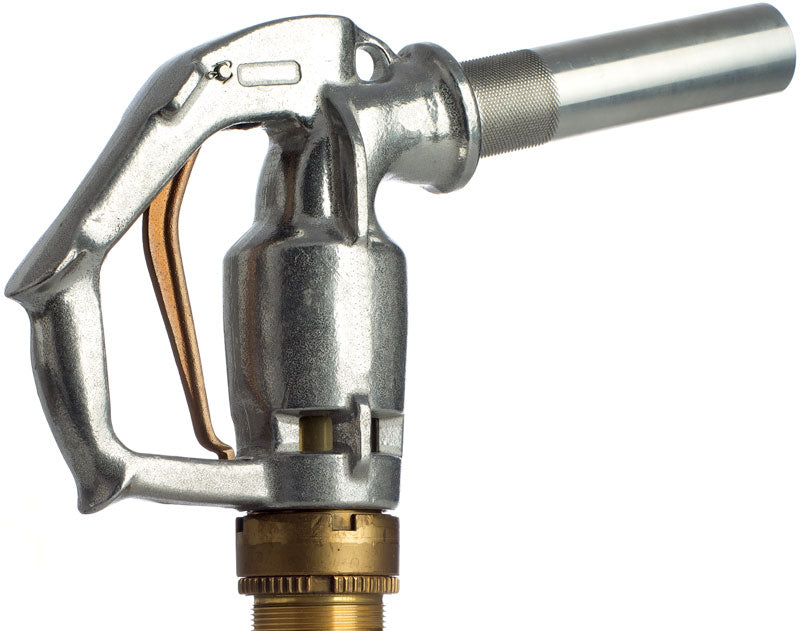

Fuel Nozzle Elaflex ZV 400, max. 450 l/min, manual shut-off, heating oil, oil, diesel, gas oil, kerosene, 56 mm spout

Elaflex ZV 400 nozzle, max. 450 l/min, manual shut-off, heating oil, oil, diesel, gas oil, petroleum, 56 mm spout

This nozzle consists of an aluminum body.

The ergonomics of this nozzle are excellent.

The nozzle has a 2-inch swivel coupling.

This coupling makes handling the nozzle and tank hose much easier, eliminating the tedious untangling of the hose.

There is a hole in the cast housing of the nozzle to hang it on a hook.

As can be seen in the pictures, a sight glass with 4 viewing windows is integrated into the inlet side of the nozzle valve.

This allows visual inspection of the pumped medium.

max 450 l/min

approved media: heating oil, diesel, rapeseed oil, lubricating oil, gas oil, petroleum (version without surge dampening for highly viscous oils available upon request)

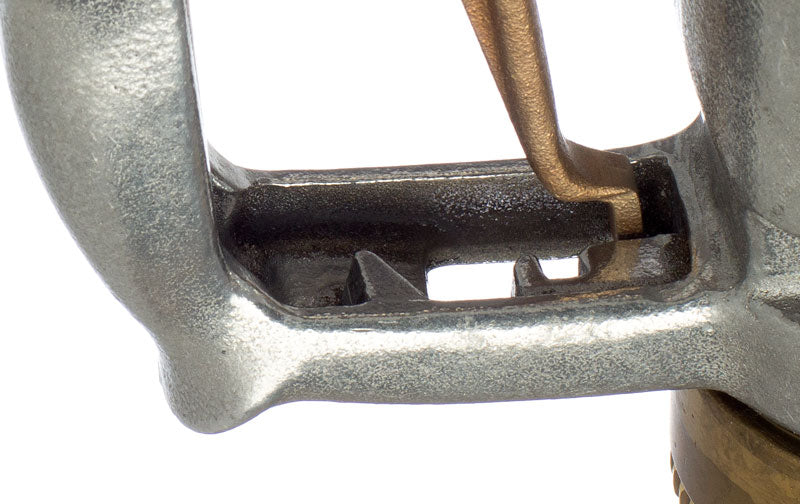

lockable in three stages in single-hand operation

internal parts made of stainless steel and Delrin

non-return valve for full hose operation

max. 10 bar nominal pressure

spout diameter 56 mm

2 inch swivel joint external thread (other versions available upon request)

manual shut-off

weight approx. 3 kg
