Drill-Mounted Stainless Steel Support for Impeller Pumps with Drill Drive

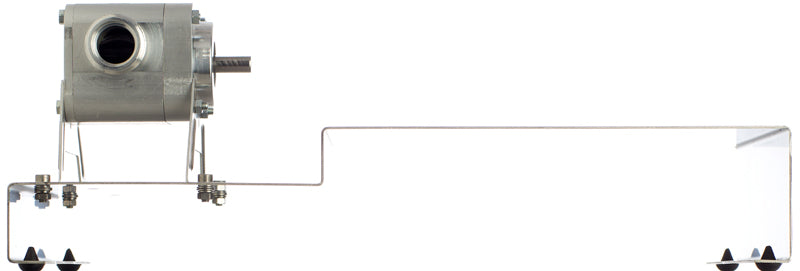

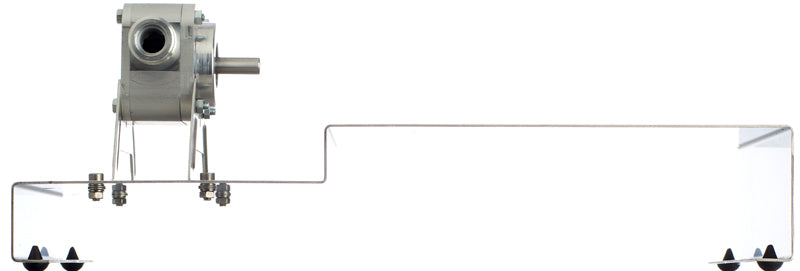

Drill support made of stainless steel for mounting the impeller drill pump and supporting a drill for drive.

The stepped base must be adjusted to the drill.

The step must be high enough so that the connection between the pump shaft and the drill is exactly horizontal.

This can be achieved by placing hard rubber mats or pieces of wood underneath.

A misaligned shaft connection leads to excessive wear and possible defects.

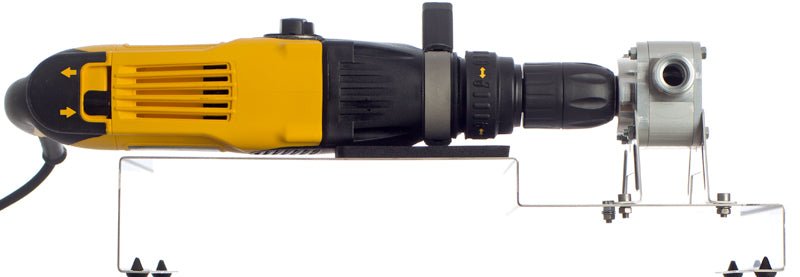

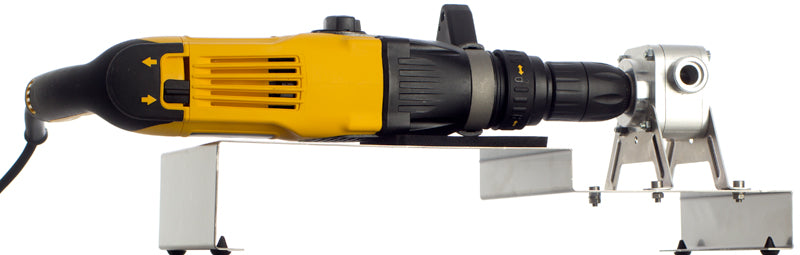

Do not attach the drill to the support; merely place it on top.

Technical details:

Material: Stainless steel V2A

4 drill holes 6 mm for mounting the impeller pump with feet

The hole pattern fits both impeller pump sizes

Length 40.5 cm

Width 20 cm

Step height 2.8 cm

Weight 1123 g
