The customer produces acids for the animal feed industry and for grain preservation.
The raw components are delivered to the plant by truck.
Small quantities are filled directly from the tank truck into IBCs.
The task was to make filling easier and to provide the filler with more safety.
The nozzle had to be made entirely of stainless steel and the entire unit had to be long enough so that the filler did not have to bear the weight of the nozzle and hose all the time.
In addition, nothing should splash out of the IBC.
From a kind of modular system, we were able to select the desired components and glue them together.
The individual solution has been in use for some time now and all employees are very satisfied with the handling.

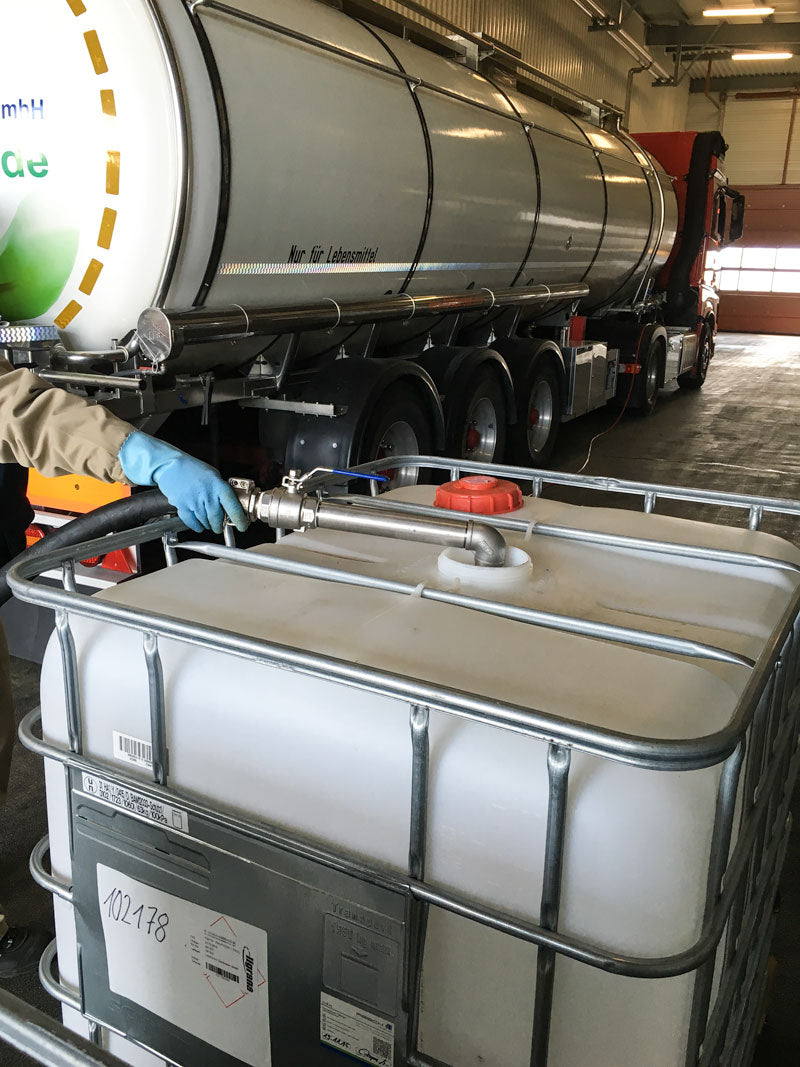

In the pictures, monopropylene glycol is being filled from the tank truck into an IBC.
The stainless steel filling unit is also used for crude rapeseed oil, lactic acid and pharmaceutical glycerin.
The stainless steel ball valve and the stainless steel pipes are in 1 1/2 inch.
The following materials are used in the manufacture of the ball valve: Housing: 1.4408, Ball: 1.4408, Seal: PTFE (15% GF), Handle: 1.4301
The pipes are made of stainless steel 1.4571 and the angle is made of stainless steel 1.4408.
